Article No. 47246
RECYFIX PRO 200, class B 125
Type 010 with FIBRETEC design slotted grating, SW 200/10 mm, in the colour black, locked, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

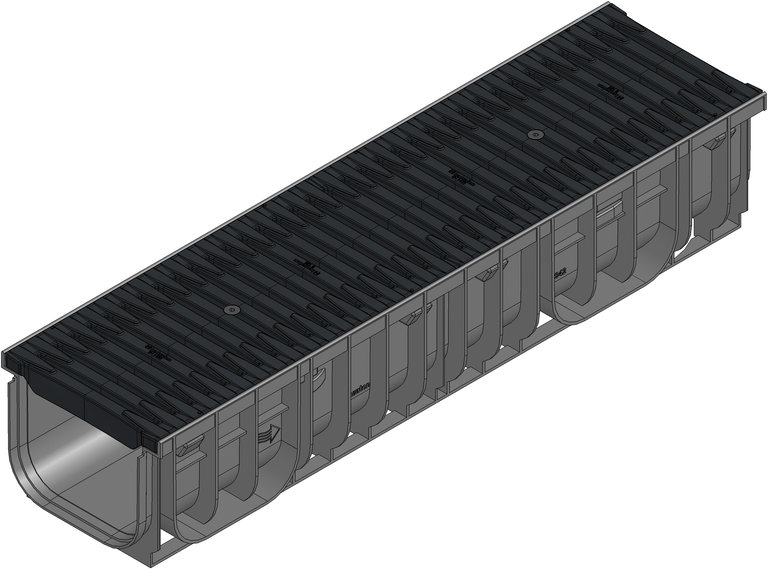

Product image
Top view
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
47246
Length
1000 mm
Width
262 mm
Height
200 mm
Einlegetiefe
20 mm
Weight
7.97 kg
Material
Galvanised steel, recycled, modified Polypropylene, reinforced Polyamide, Steel black galvanised
Intake cross-section
656.0 cm²/m
Nominal size
200
Internal channel cross-section
294 cm²
Sales text
M
Channel material
recycled, modified Polypropylene
Material grating
reinforced Polyamide
Sales text
EN 1433, DIN 51130, AS 4586, DIN 19580, EN 16165
Sales text
RECYFIX PRO 200 Channel type 010 with integrated edge frames, with FIBRETEC Design slotted grating SW 200/10 mm, black, cl. B 125, locked, 1 m
Sales text
RECYFIX PRO 200 type 010 - Channel body made of recycled polypropylene, with integrated angle housing, with vertical connection possibility DN/OD 110/160, with FIBRETEC design slotted grating, slot width 200/10 mm, black, made of fibre-reinforced polyamide, with longitudinal slide protection and locking, load class A 15 - B 125 according to EN 1433, L/W/H 1000x262x201 mm, item no. 47246
Sales text
20
Declaration of Performance
Tender Texts
Installation example
water-bound road surfaces class A 15 - B 125
Asphalt class A 15 - B 125
Pavement class A 15 - B 125
Concrete class A 15 - C 250
Asphalt class C 250
Pavement class C 250
Asphalt class A 15 - B 125
Pavement class A 15 - C 250
Asphalt class C 250
Concrete class C 250
Installation instructions
