Article No. 41247
RECYFIX STANDARD 100, class A 15
Type 01 with perforated grating "Elegance", stainless steel, locked, 0,5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

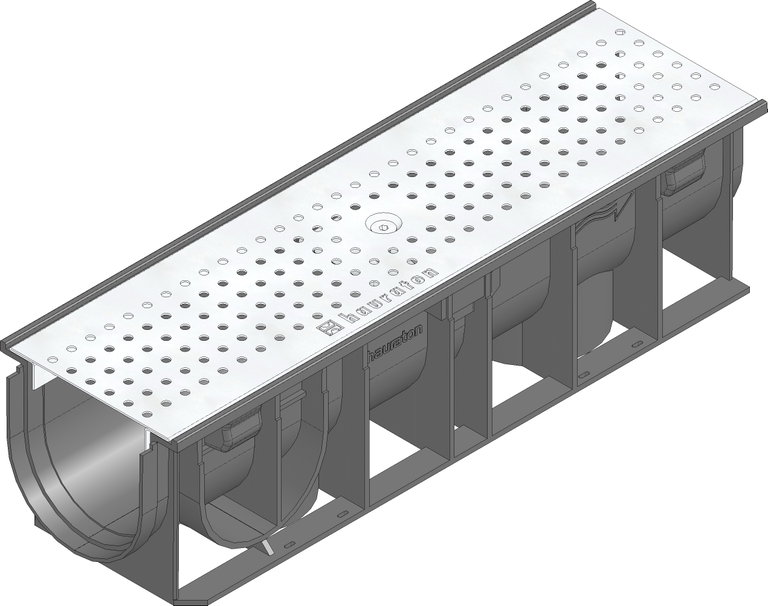

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
41247
Length
500 mm
Width
150 mm
Height
134 mm
Einlegetiefe
3 mm
Weight
1.95 kg
Material
recycled, modified Polypropylene, RECYFIX Material (recycled PA), Stainless steel 1.4301
Intake cross-section
100.0 cm²/m
Nominal size
100
Internal channel cross-section
92 cm²
Sales text
M
Channel material
recycled, modified Polypropylene
Material grating
Stainless steel 1.4301
Sales text
EN 1433, DIN 19580
Sales text
RECYFIX STANDARD 100 Channel type 01 with perforated grating Ø 6 mm, stainless steel, cl. A 15, locked, 0.5 m
Sales text
RECYFIX STANDARD 100 type 01 - channel made of modified PP, according to EN 1433, with perforated grating, stainless steel CNS 1.4301 (AISI 304), Ø 6 mm, with locking device, loading capacity A 15, L/W/H 500x150x134 mm, item no. 41247
Sales text
98
Declaration of Performance
Tender Texts
Installation example
Pavement class A 15 - B 125
Cemented floor class A 15 - B 125
Pavement class C 250
Asphalt class A 15 - B 125
Asphalt class C 250
Installation instructions
