Article No. 41210
RECYFIX STANDARD 100, class B 125
Type 01 with mesh grating MW 30/10 mm, stainless steel, locked, 1,0 m
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

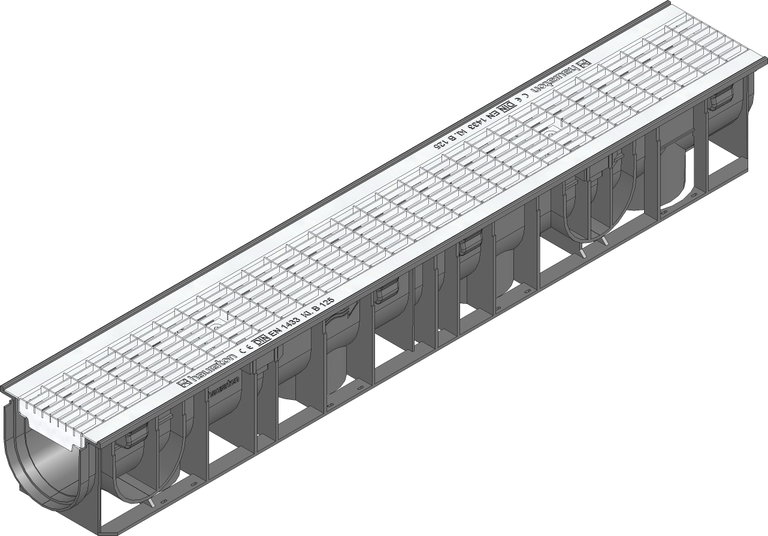

Product image
Technical drawing
Drawing (CAD)
Drawing
Top view
Data Sheet
Technical information and metrics
Article No.
41210
Length
1000 mm
Width
150 mm
Height
134 mm
Weight
5.20 kg
Material
recycled, modified Polypropylene, RECYFIX Material (recycled PA), Stainless steel 1.4301
Intake cross-section
735.0 cm²/m
Nominal size
100
Internal channel cross-section
92 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material grating
Stainless steel 1.4301
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX STANDARD 100 channel type 01 with mesh grating MW 30/10, stainless steel, cl. B 125, with locking device, 1 m
Product description
RECYFIX STANDARD 100 type 01 - channel made of modified PP, according to EN 1433, with vertical connection possibility DN/OD 110, with mesh grating, stainless steel CNS 1.4301 (AISI 304), mesh width 30/10, with locking device, trafficable, L/W/H 1000x150x134 mm, item no. 41210
Packaging unit
49
Declaration of Performance
Tender Texts
Installation example
Pavement class A 15 - B 125
Cemented floor class A 15 - B 125
Pavement class C 250
Pavement class A 15 - B 125
Asphalt class A 15 - B 125
Concrete class A 15 - C 250
Asphalt class C 250
Pavement class C 250
Installation instructions
