Article No. 41230
RECYFIX STANDARD 100, class C 250
Type 01 with ductile iron grating, SW 80/6 mm, black, locked, 1,0 m
Questions?
Our experienced planning team will be happy to help you.
Get in touch

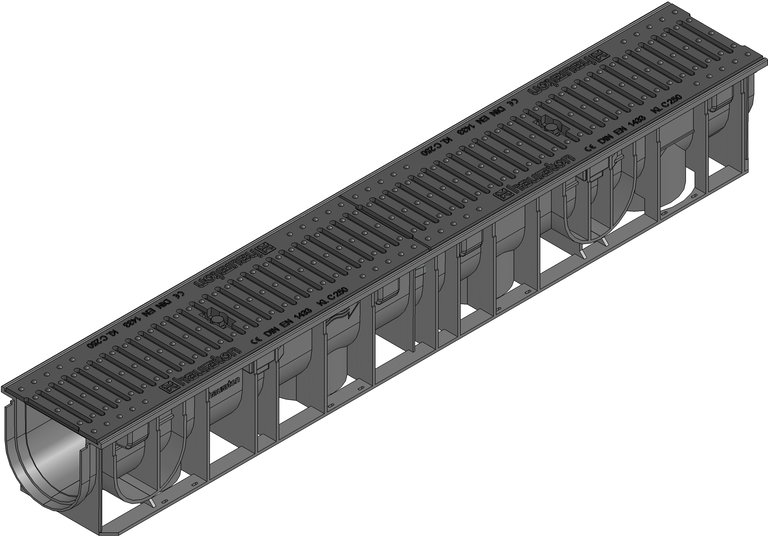

Product image
Top view
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
41230
Length
1000 mm
Width
150 mm
Height
134 mm
Einlegetiefe
6 mm
Weight
8.34 kg
Material
Ductile iron GJS 500-7, recycled, modified Polypropylene, RECYFIX Material (recycled PA), Steel black galvanised
Intake cross-section
254.0 cm²/m
Nominal size
100
Internal channel cross-section
92 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 51130, AS 4586, DIN 19580, EN 16165
Sales text
RECYFIX STANDARD 100 Channel type 01 with ductile iron grating SW 80/6 mm, black, cl. C 250, locked, 1 m
Product description
RECYFIX STANDARD 100 type 01 - Channel body made of recycled polypropylene, with vertical connection possibility DN/OD 110, with ductile iron grating SW 80/6 mm, made of spheroidal ductile iron GJS 500-7, black, overlying, with longitudinal slide protection and locking, load class A 15 - C 250 according to EN 1433, LxWxH 1000x150x134 mm, item no. 41230
Packaging unit
49
Declaration of Performance
Tender Texts
Installation example
Pavement class A 15 - B 125,
Cemented floor class A 15 - C 250,
Pavement class C 250,
Asphalt class A 15 - B 125,
Asphalt class C 250,
Pavement class A 15 - B 125,
Pavement class C 250,
Installation instructions
