Article No. 40264
RECYFIX STANDARD 100, class C 250
Type 01 with GUGI-Ductile iron mesh grating MS 15/25 mm, black, locked, 0,5 m
Questions?
Our experienced planning team will be happy to help you.
Get in touch

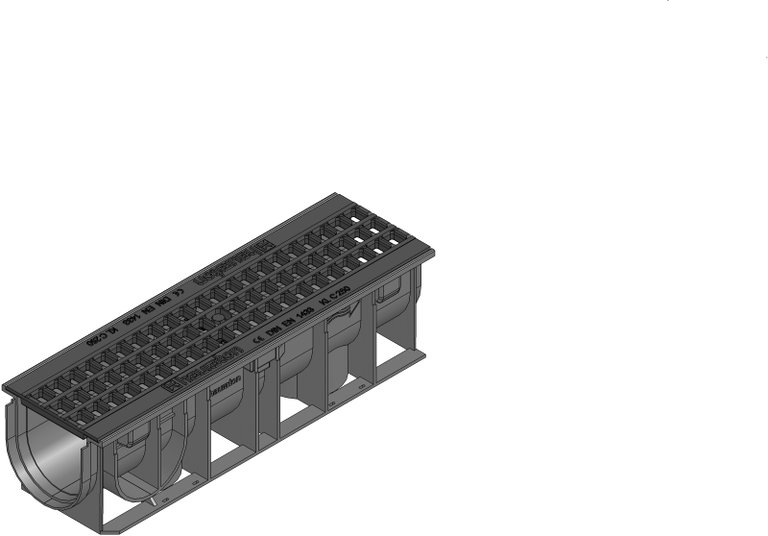

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
40264
Length
500 mm
Width
150 mm
Height
134 mm
Einlegetiefe
6 mm
Weight
3.50 kg
Material
Ductile iron GJS 500-7, recycled, modified Polypropylene, RECYFIX Material (recycled PA), Steel black galvanised
Intake cross-section
453.0 cm²/m
Nominal size
100
Internal channel cross-section
92 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX STANDARD 100 Channel type 01 with GUGI-ductile iron mesh grating MS 15/25 mm, black, cl. C 250, locked, 0.5 m
Product description
RECYFIX STANDARD 100 type 01 - Channel body made of recycled polypropylene, with GUGI-ductile iron mesh grating MS 15/25 mm, made of spheroidal ductile iron EN-GJS-500-7, black, overlying, with longitudinal slide protection and locking, load class A 15 - C 250 according to EN 1433, LxWxH 500x150x134 mm, item no. 40264
Packaging unit
98
Declaration of Performance
Tender Texts
Installation example
Pavement class A 15 - B 125,
Cemented floor class A 15 - C 250,
Pavement class C 250,
Asphalt class A 15 - B 125,
Asphalt class C 250,
Pavement class A 15 - B 125,
Pavement class C 250,
Installation instructions
