Article No. 41232
RECYFIX STANDARD 100, class C 250
Type 010 with ductile iron grating, SW 80/6 mm, black, locked, 1,0 m
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

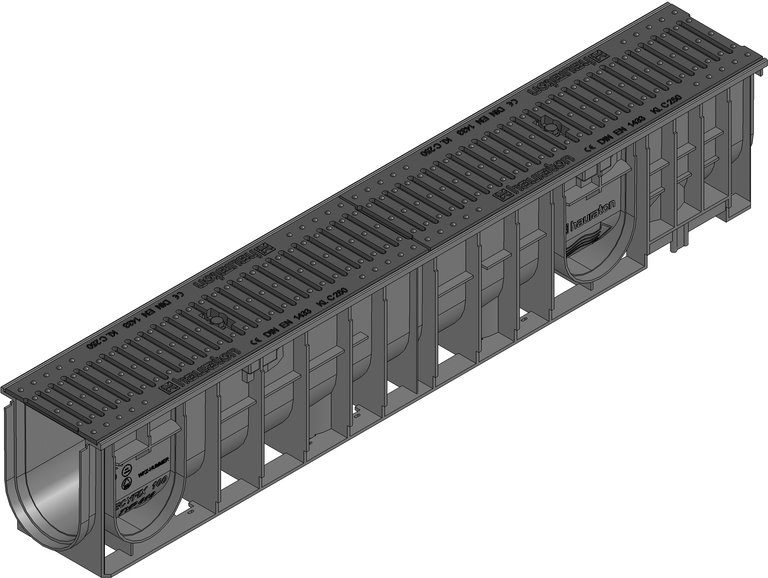

Product image
Top view
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
41232
Length
1000 mm
Width
150 mm
Height
185 mm
Einlegetiefe
6 mm
Weight
8.74 kg
Material
Ductile iron GJS 500-7, recycled, modified Polypropylene, RECYFIX Material (recycled PA), Steel black galvanised
Intake cross-section
254.0 cm²/m
Nominal size
100
Internal channel cross-section
142 cm²
Sales text
M
Channel material
recycled, modified Polypropylene
Material grating
Ductile iron GJS 500-7
Sales text
EN 1433, DIN 51130, AS 4586, DIN 19580, EN 16165
Sales text
RECYFIX STANDARD 100 channel type 010 with ductile iron grating, SW 6 mm, cl. C 250, with locking device, 1 m
Sales text
RECYFIX STANDARD 100 type 010 - channel made of modified PP, according to EN 1433, with vertical connection possibility DN/OD 110, with ductile iron grating made of spheroidal ductile iron GJS 500-7, slot width 6 mm, black, with horizontal thrust resistance and locking device, loading capacity from A 15 - C 250, L/W/H 1000x150x185 mm, item no. 41232
Sales text
42
Declaration of Performance
Tender Texts
Installation example
Pavement class A 15 - B 125
Cemented floor class A 15 - B 125
Pavement class C 250
Pavement class A 15 - B 125
Asphalt class A 15 - B 125
Concrete class A 15 - C 250
Asphalt class C 250
Pavement class C 250
Installation instructions
