Article No. 40299

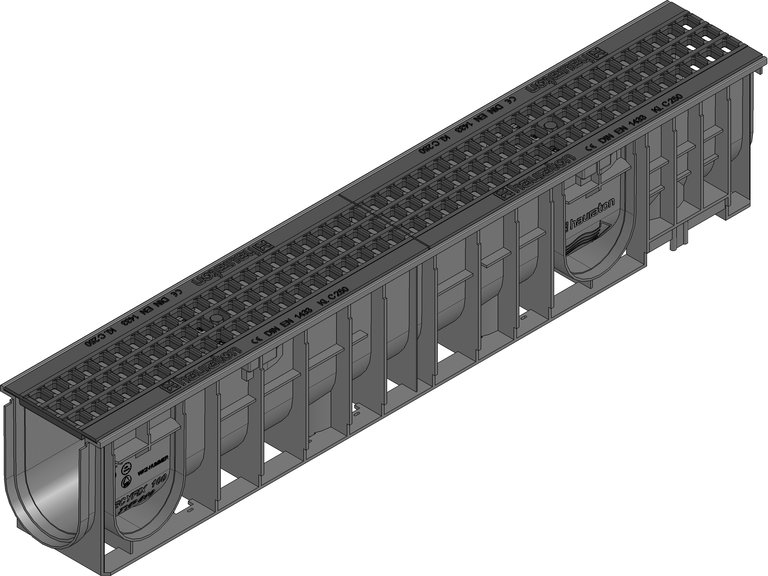

RECYFIX STANDARD 100, class C 250
Type 010 with GUGI-Ductile iron mesh grating MW 15/25 mm, black, locked, 1,0 m
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Technical information and metrics
Article No.
40299
Length
1000 mm
Width
150 mm
Height
185 mm
Weight
8.51 kg
Material
Ductile iron GJS 500-7, recycled, modified Polypropylene, RECYFIX Material (recycled PA), Steel black galvanised
Intake cross-section
453.0 cm²/m
Nominal size
100
Internal channel cross-section
142 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX STANDARD 100 Channel Type 010 with GUGI ductile iron mesh grating MW 15/25, cl.C 250 with locking device, length 1000 mm
Product description
RECYFIX STANDARD 100 type 010 - channel made of modified PP, according to EN 1433, with vertical connection possibility DN/OD 110, with GUGI-ductile iron mesh grating made of spheroidal ductile iron GJS 500-7, mesh width 15/25, with horizontal thrust resistance and locking device, black, loading capacity from A 15 - C 250, L/W/H 1000x150x185 mm, item no. 40299
Packaging unit
42
