Article No. 40237
RECYFIX STANDARD 100, trafficable
Type 60 with mesh grating MS 30/10 mm, galvanised, locked, 1,0 m
Questions?
Our experienced planning team will be happy to help you.
Get in touch

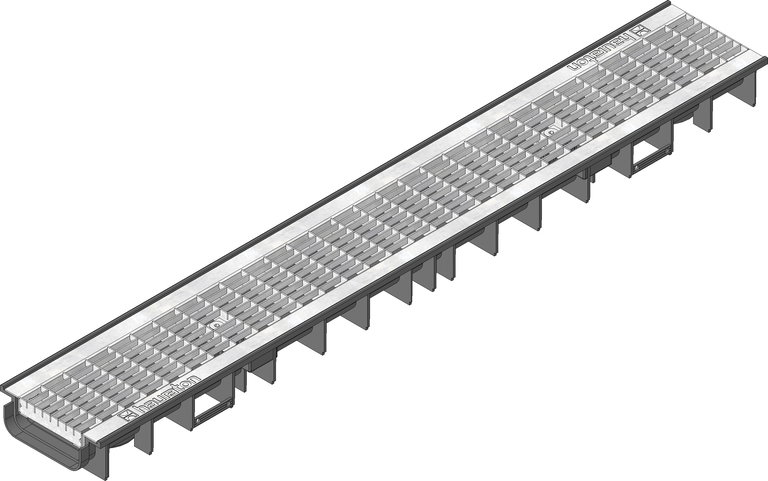

Product image
Top view
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
40237
Length
1000 mm
Width
150 mm
Height
60 mm
Einlegetiefe
2 mm
Weight
3.72 kg
Material
Galvanised steel, hot-dip galvanised steel, recycled, modified Polypropylene, RECYFIX Material (recycled PA)
Intake cross-section
760.0 cm²/m
Nominal size
100
Internal channel cross-section
35 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material grating
hot-dip galvanised steel
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX STANDARD 100 Channel type 60 with mesh grating MS 30/10 mm, galvanised, trafficable, locked, 1 m
Product description
RECYFIX STANDARD 100 type 60 - Channel body made of recycled polypropylene, according to EN 1433, with vertical connection possibility DN/OD 75, with mesh grating MS 30/10 mm, made of galvanised steel, overlying, trafficable, with locking, LxWxH 1000x150x60 mm, item no. 40237
Packaging unit
88
Declaration of Performance
Tender Texts
Installation example
Pavement class A 15 - B 125,
Cemented floor class A 15 - C 250,
Pavement class C 250,
Asphalt class A 15 - B 125,
Asphalt class C 250,
Pavement class A 15 - B 125,
Pavement class C 250,
Installation instructions
