Article No. 40236
RECYFIX STANDARD 100, trafficable
Type 60 with slotted grating SW 9 mm, locked, 1,0 m*
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

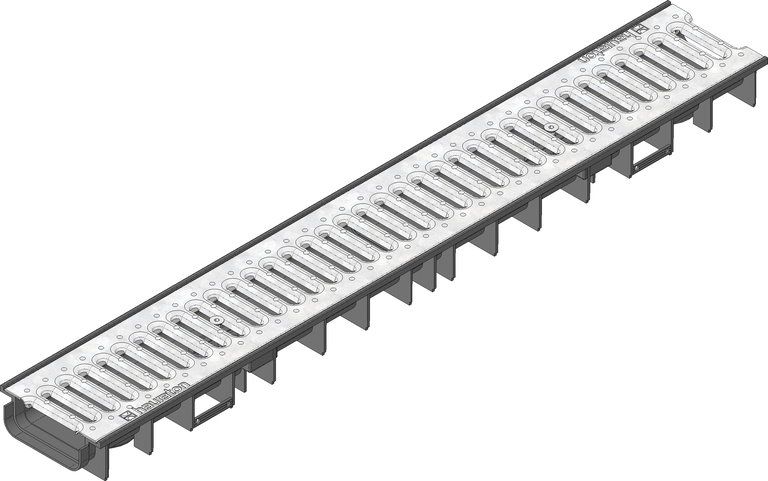

Product image
Top view
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
40236
Length
1000 mm
Width
150 mm
Height
60 mm
Weight
3.00 kg
Material
Galvanised steel, recycled, modified Polypropylene, RECYFIX Material (recycled PA), strip galvanized steel
Intake cross-section
242.0 cm²/m
Nominal size
100
Internal channel cross-section
35 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material grating
strip galvanized steel
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX STANDARD 100 Channel Type 60 with slotted grating, galvanised, trafficable, with locking device
Product description
RECYFIX STANDARD 100 type 60 - channel made of modified PP, according to EN 1433, with vertical connection possibility DN/OD 75, with slotted grating and locking device, trafficable, galvanised, slot width 75/9, L/W/H 1000x150x60 mm, item no. 40236
Packaging unit
88
Declaration of Performance
Tender Texts
Installation example
Pavement class A 15 - B 125
Cemented floor class A 15 - B 125
Pavement class C 250
Pavement class A 15 - B 125
Asphalt class A 15 - B 125
Concrete class A 15 - C 250
Asphalt class C 250
Pavement class C 250
Installation instructions
