Article No. 40137

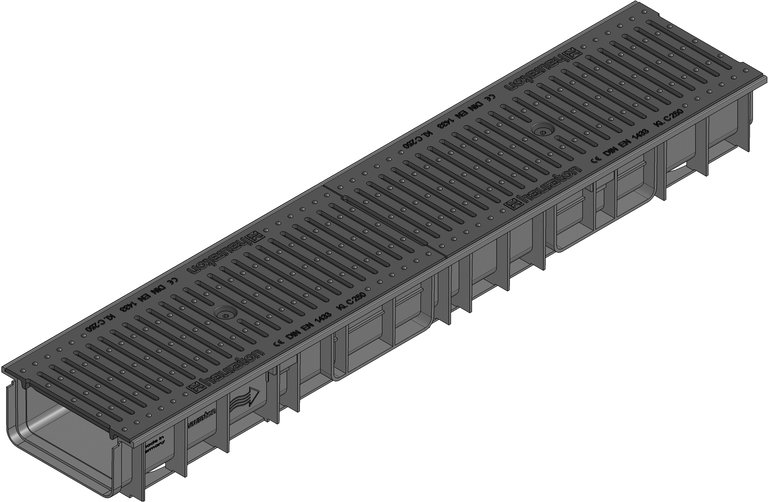

RECYFIX STANDARD 150, class C 250
Type 100 with ductile iron grating black, SW 6 mm, locked, 1,0 m
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Technical information and metrics
Article No.
40137
Length
1000 mm
Width
210 mm
Height
100 mm
Weight
12.98 kg
Material
Ductile iron GJS 500-7, recycled, modified Polypropylene, reinforced Polyamide, Steel black galvanised
Intake cross-section
400.0 cm²/m
Nominal size
150
Internal channel cross-section
116 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX STANDARD 150 Type 100 with ductile iron grating black, SW 6 mm, cl. C 250, locked
Product description
RECYFIX STANDARD 150 type 100 - channel made of modified PP, according to EN 1433, with vertical connection possibility DN/OD 75/110, with ductile iron grating made of spheroidal ductile iron GJS 500-7, slot width 6 mm, with horizontal thrust resistance and locking device, black, loading capacity from A 15 - C 250, L/W/H 1000x210x100 mm, item no. 40137
Packaging unit
50
