Article No. 40635
RECYFIX STANDARD 200, class B 125
Type 100 with mesh grating MW 30/30 mm, galvanised, locked, 1,0 m
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

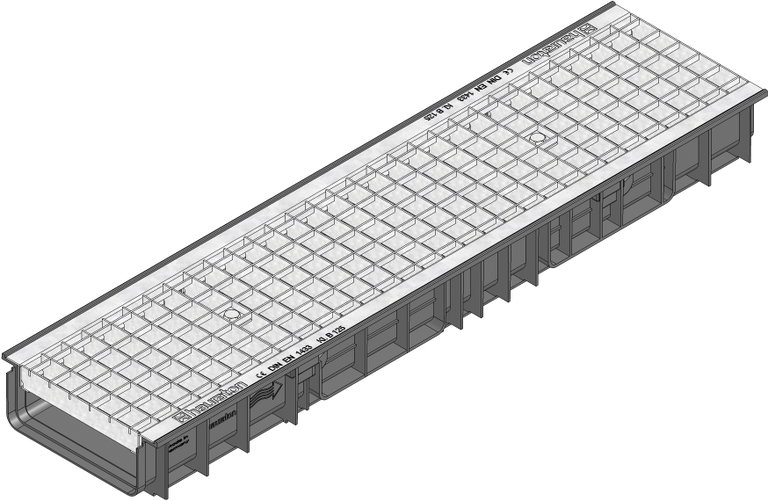

Product image
Technical drawing
Drawing (CAD)
Drawing
Top view
Data Sheet
Technical information and metrics
Article No.
40635
Length
1000 mm
Width
256 mm
Height
100 mm
Weight
8.32 kg
Material
Galvanised steel, hot-dip galvanised steel, recycled, modified Polypropylene
Intake cross-section
1633.0 cm²/m
Nominal size
200
Internal channel cross-section
150 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material grating
hot-dip galvanised steel
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX STANDARD 200 Type 100 with mesh grating MW 30/30, cl. B 125, locked
Product description
RECYFIX STANDARD 200 type 100 - channel made of modified PP, according to EN 1433, with vertical connection possibility DN/OD 75/110, with mesh grating, mesh width 30/30, galvanised, with locking device, loading capacity from A 15 up to B 125, L/W/H 1000x256x100 mm, item no. 40635
Packaging unit
36
Declaration of Performance
Tender Texts
Installation example
Pavement class A 15 - B 125
Cemented floor class A 15 - B 125
Pavement class C 250
Pavement class A 15 - B 125
Asphalt class A 15 - B 125
Concrete class A 15 - C 250
Asphalt class C 250
Pavement class C 250
Installation instructions
