Article No. 40660
RECYFIX STANDARD 200, class C 250
Type 010 with ductile iron grating 2 x 85/20 mm, black, locked, 1,0 m
Questions?
Our experienced planning team will be happy to help you.
Get in touch

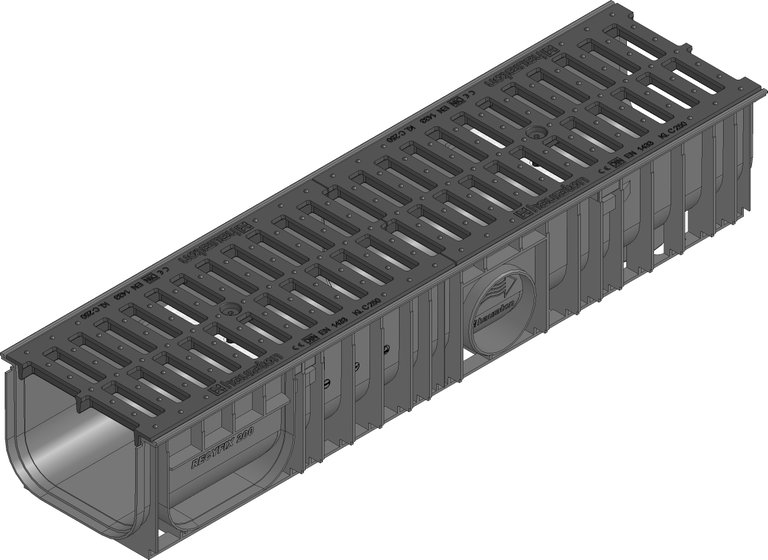

Product image
Technical drawing
Drawing (CAD)
Drawing
Top view
Data Sheet
Technical information and metrics
Article No.
40660
Length
1000 mm
Width
256 mm
Height
185 mm
Einlegetiefe
5 mm
Weight
15.00 kg
Material
Ductile iron GJS 500-7, Galvanised steel, recycled, modified Polypropylene, Steel black galvanised
Intake cross-section
822.0 cm²/m
Nominal size
200
Internal channel cross-section
294 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX STANDARD 200 Channel type 010 with ductile iron grating 2x SW 85/20.5 mm, black, cl. C 250, locked, 1 m
Product description
RECYFIX STANDARD 200 type 010 - Channel body made of recycled polypropylene, with lateral (DN/OD 110) and vertical connection possibility (DN/OD 110/160), with ductile iron grating 2x SW 85/20, made of spheroidal ductile iron EN-GJS-500-7, black, overlying, with longitudinal slide protection and locking, load class A 15 - C 250 according to EN 1433, LxWxH 1000x256x185 mm, item no. 40660
Packaging unit
20
Declaration of Performance
Tender Texts
Installation example
Pavement class B 125,
Cemented floor class B 125 - C 250,
Concrete class C 250,
Pavement class C 250,
Asphalt class A 15 - B 125,
Asphalt class C 250,
Pavement class A 15 - B 125,
Pavement class C 250,
Installation instructions
