Article No. 40640
RECYFIX STANDARD 200, class C 250
Type 100 with ductile iron grating 2 x 85/20 mm, black, locked, 1,0 m
Questions?
Our experienced planning team will be happy to help you.
Get in touch

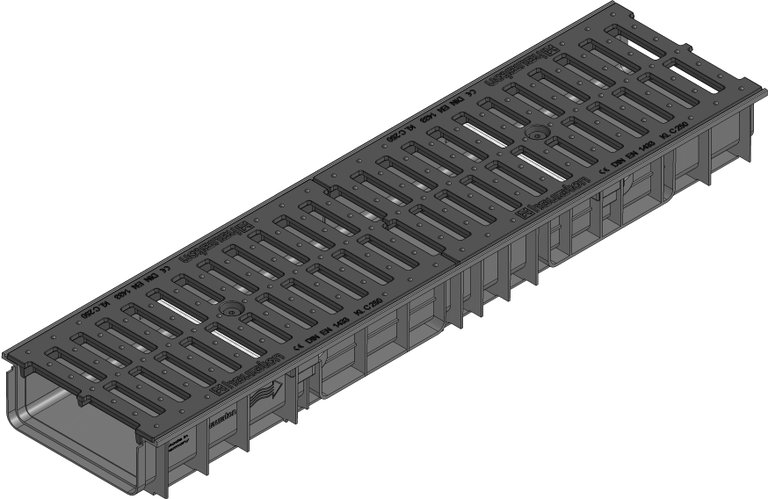

Product image
Technical drawing
Drawing (CAD)
Drawing
Top view
Data Sheet
Technical information and metrics
Article No.
40640
Length
1000 mm
Width
256 mm
Height
100 mm
Einlegetiefe
5 mm
Weight
13.92 kg
Material
Ductile iron GJS 500-7, Galvanised steel, recycled, modified Polypropylene, Steel black galvanised
Intake cross-section
822.0 cm²/m
Nominal size
200
Internal channel cross-section
150 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX STANDARD 200 Channel type 100 with ductile iron grating, SW 20.5 mm, cl. C 250, locked
Product description
RECYFIX STANDARD 200 type 100 - Channel body made of recycled polypropylene, with vertical connection possibility DN/OD 75/110, with ductile iron grating 2x SW 85/20.5 mm, made of spheroidal ductile iron EN-GJS-500-7, black, overlying, with longitudinal slide protection and locking, load class A 15 - C 250 according to EN 1433, LxWxH 1000x256x100 mm, item no. 40640
Packaging unit
36
Declaration of Performance
Tender Texts
Installation example
Pavement class B 125,
Cemented floor class B 125 - C 250,
Concrete class C 250,
Pavement class C 250,
Asphalt class A 15 - B 125,
Asphalt class C 250,
Pavement class A 15 - B 125,
Pavement class C 250,
Installation instructions
