Article No. 40875
RECYFIX STANDARD 300, class C 250
Type 010 with GUGI-Ductile iron mesh grating, MW 15/25 mm, black, locked, 1,0 m
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

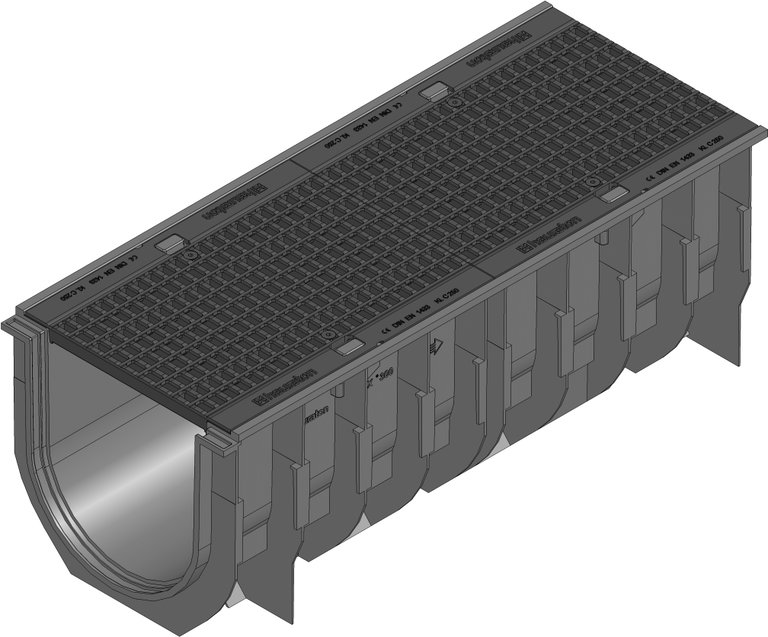

Product image
Top view
Technical drawing
Drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
40875
Length
1000 mm
Width
420 mm
Height
381 mm
Weight
35.74 kg
Material
Ductile iron GJS 500-7, recycled, modified Polypropylene, Steel black galvanised, strip galvanized steel
Intake cross-section
1360.0 cm²/m
Nominal size
300
Internal channel cross-section
857 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX STANDARD 300 Channel type 010 with GUGI-ductile iron mesh grating, MW: 15/25, black, cl. C 250
Product description
RECYFIX STANDARD LOCK 300 type 010 - channel made of modified PP, according to EN 1433, with vertical connection possibility DN/OD 160/200, with GUGI-ductile iron mesh grating made of spheroidal ductile iron GJS 500-7, mesh width 15/25 mm, black, with horizontal thrust resistance and locking device, loading capacity from A 15 - C 250, L/W/H 1000x420x381 mm, item no. 40875
Packaging unit
6
Declaration of Performance
Tender Texts
Installation example
Pavement class A 15 - B 125
Cemented floor class A 15 - B 125
Pavement class C 250
Pavement class A 15 - B 125
Asphalt class A 15 - B 125
Concrete class A 15 - C 250
Asphalt class C 250
Pavement class C 250
Installation instructions
