Article No. 32054

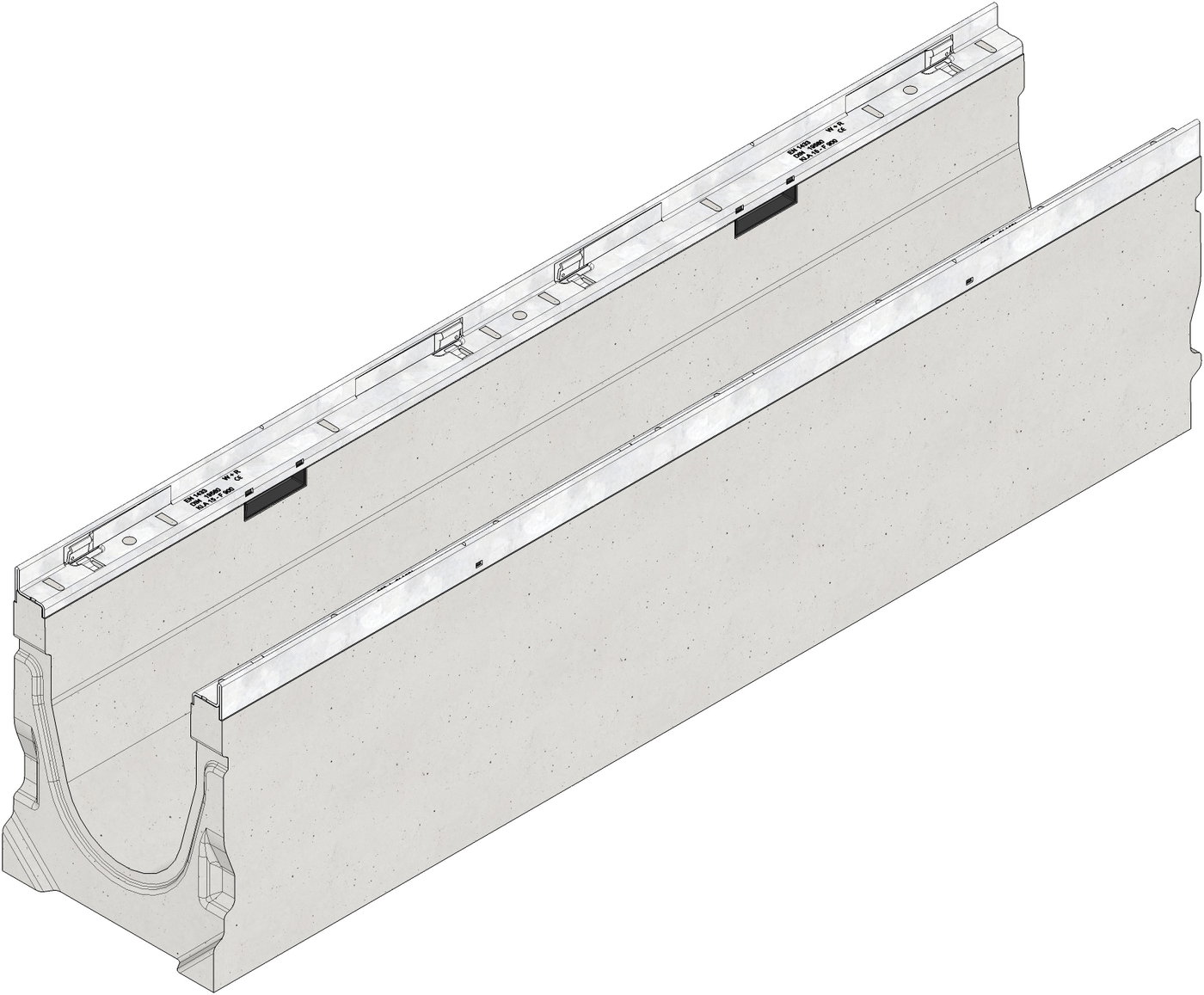

SERVICE CHANNEL FASERFIX KS 150 made of fibre-reinforced concrete with 20 mm angle housing, class E 600
Type 010, 1,0 m
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

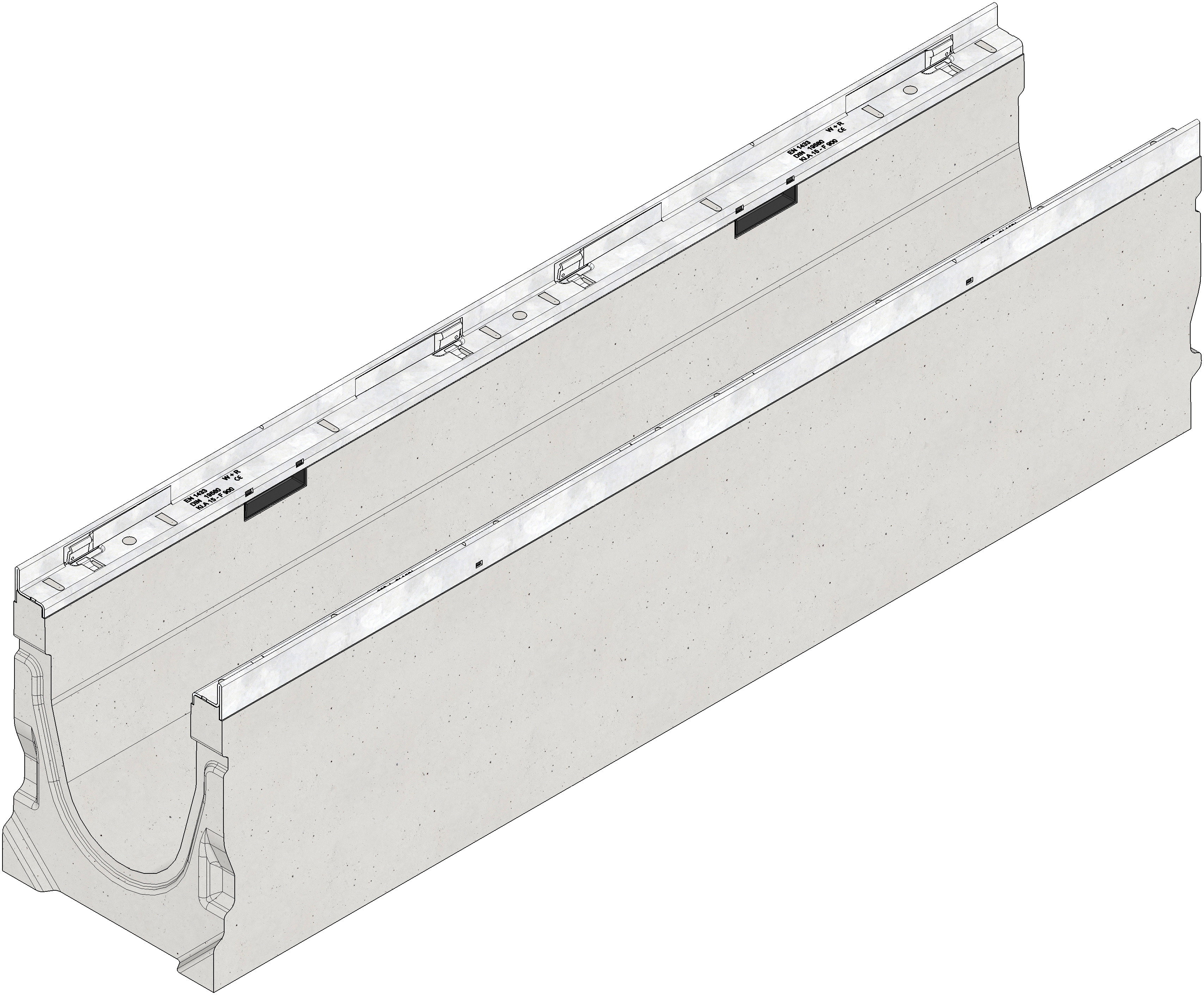

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
32054
Length
1000 mm
Width
210 mm
Height
265 mm
Weight
60.17 kg
Material
fibre-reinforced concrete, strip galvanized steel
Height of angle housing
20 mm
Nominal size
150
Internal channel cross-section
245 cm²
Fall
-
Fixing type
Locking handle, SIDE-LOCK
Type according to DIN EN 1433
M
Channel material
fibre-reinforced concrete
Material of angle housing
strip galvanized steel
Regulations
EN 1433, DIN 19580
Sales text
SERVICE CHANNEL FASERFIX KS 150 channel type 010 with galvanised angle housing, 1m
Product description
SERVICE channel FASERFIX KS 150 type 010 -channel made of fibre reinforced concrete, loading capacity from A 15 up to F 900 according EN 1433, CE compliant, with galvanised steel angle housing and boltless quick-locking system SIDE-LOCK, eightfold locking, without traverse webs in the channel run, with sealing groove, L/W/H 1000x210x265mm, item no. 32054
Packaging unit
15
Declaration of Performance
Tender Texts
Installation example
Pavement class A 15 - C 250
Asphalt class A 15 - D 400
Concrete class A 15 - F 900
Pavement / large-size slab class D 400
Pavement class A 15 - C 250
Asphalt class A 15 - D 400
Concrete class C 250 - D 400
Pavement class D 400
Asphalt class E 600
Concrete class E 600
Pavement class A 15 - C 250
Asphalt class A 15 - D 400
Asphalt class A 15 - E 600
Concrete class A 15 - F 900
Pavement / large-size slab class D 400
Concrete class E 600
Concrete class F 900
Pavement class A 15 - C 250
Concrete class C 250 - D 400
Pavement class D 400
Asphalt class E 600
Asphalt class F 900
Asphalt class A 15 - B 125
Pavement class A 15 - C 250
Asphalt class C 250
Concrete class C 250
Concrete class E 600
Asphalt class A 15 - B 125
Pavement class A 15 - C 250
Asphalt class C 250 - D 400
Concrete class C 250 - D 400
Pavement class D 400
Asphalt class E 600
industrial flooring class A 15 - C 250
industrial flooring class D 400 - F 900
