Article No. 32037
SERVICE CHANNEL FASERFIX KS 200 made of fibre-reinforced concrete with 20 mm angle housing, class C 250 / E 600
Ductile iron solid cover with opening for cables, (SW 128/49 mm), black, KTL-coated class C 250, locked, 0,5 m
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

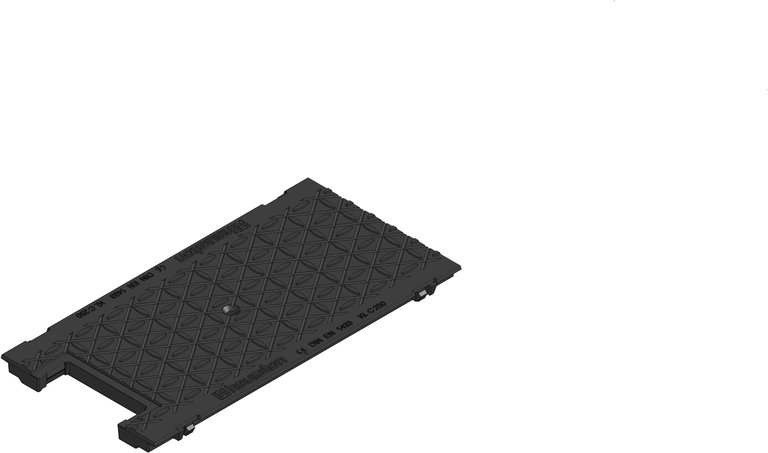

Product image
Technical drawing
Drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
32037
Length
500 mm
Width
249 mm
Height
27 mm
Weight
8.09 kg
Material
Ductile iron GJS 500-7
Intake cross-section
0.0 cm²/m
Nominal size
200
Inlet opening
0
Fixing type
Locking handle, SIDE-LOCK
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
Ductile iron grating with opening for cables, KTL ,black, cl. C 250, SERVICE CHANNEL FASERFIX KS 200, 0,5 m
Product description
SERVICE CHANNEL FASERFIX KS 200 - Ductile iron grating with opening for cables, KTL-coated, loading capacity from A 15 up to C 250 according to EN 1433, CE-conform, 4-times locking, L: 500 mm, Item No. 32037
Packaging unit
108
Declaration of Performance
