Article No. 32345
SERVICE CHANNEL FASERFIX SUPER 150 made of fibre-reinforced concrete with 40 mm angle housing, class E 600
Ductile iron solid cover, black, KTL-coated, with plastic caps, locked, 0,5 m
Questions?

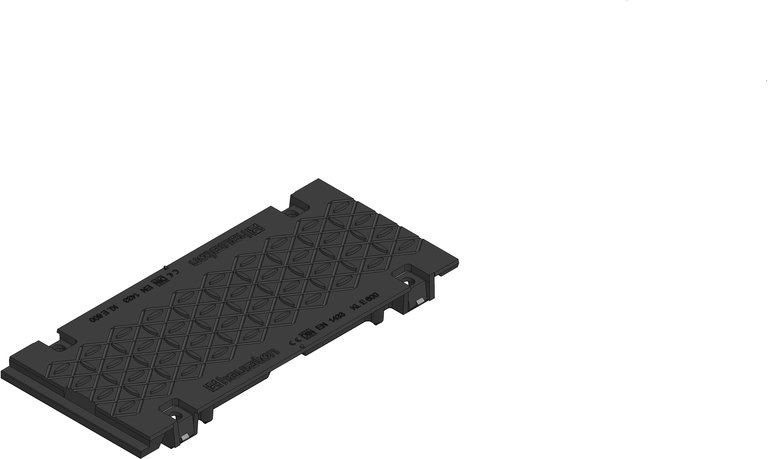

Product image
Technical drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
32345
Length
500 mm
Width
229 mm
Height
48 mm
Weight
10.65 kg
Material
Ductile iron GJS 500-7
Intake cross-section
0.0 cm²/m
Nominal size
150
Inlet opening
0
Fixing type
SIDE-LOCK, Bolting
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
Ductile iron grating closed, KTL, with UPVC caps black, cl. E 600, SERVICE CHANNEL FASERFIX SUPER 150, 0,5 m
Product description
SERVICE CHANNEL FASERFIX SUPER 150 - Ductile iron grating, closed, KTL coated, loading capacity from A 15 up to E 600 according to EN 1433, CE-conform, 4-times locking, with plastic pins, length 500 mm, Item No. 32345
Packaging unit
70
