Article No. 32056

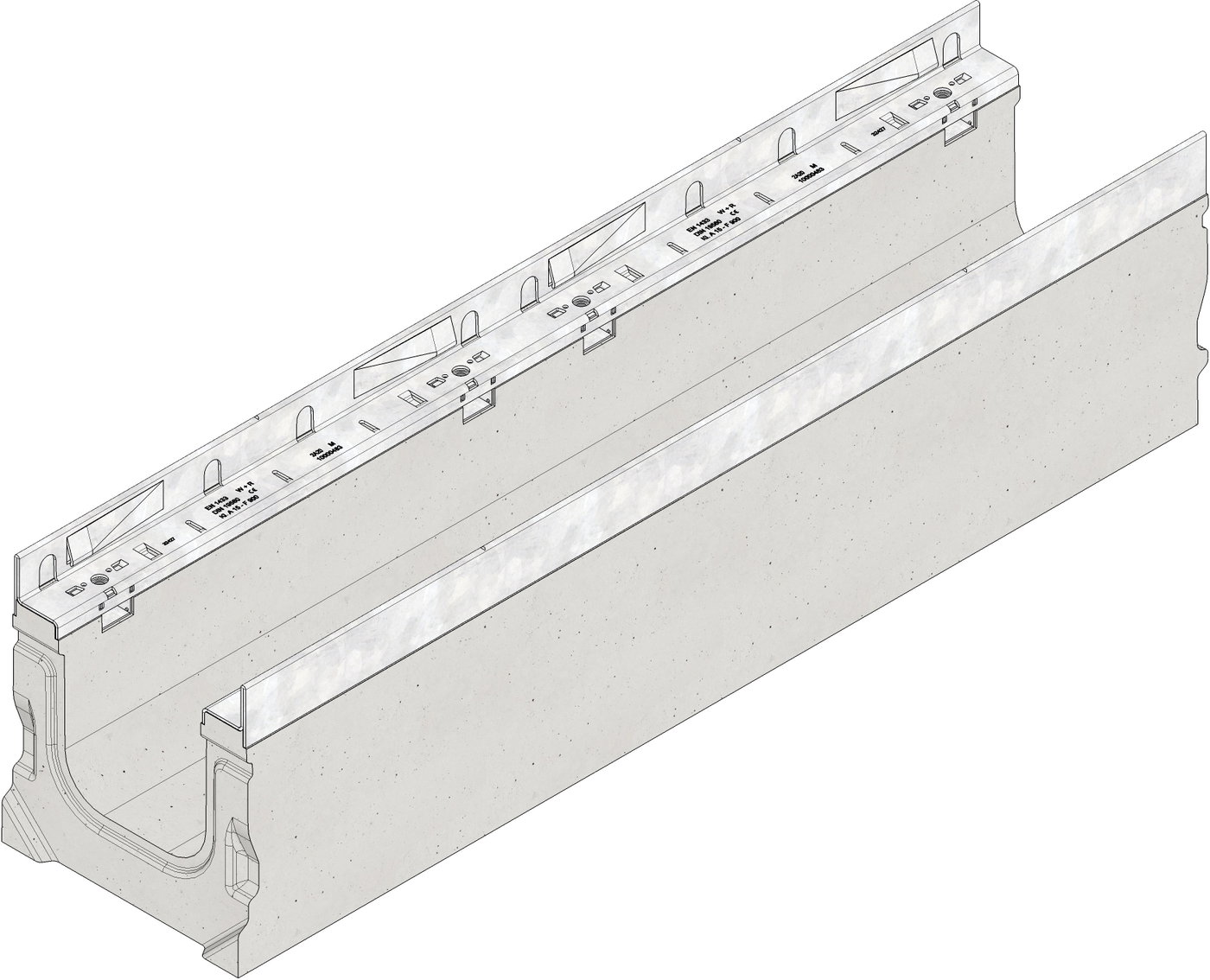

SERVICE CHANNEL FASERFIX SUPER 150 made of fibre-reinforced concrete with 40 mm angle housing, class E 600
Type 01 E, 1,0 m
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

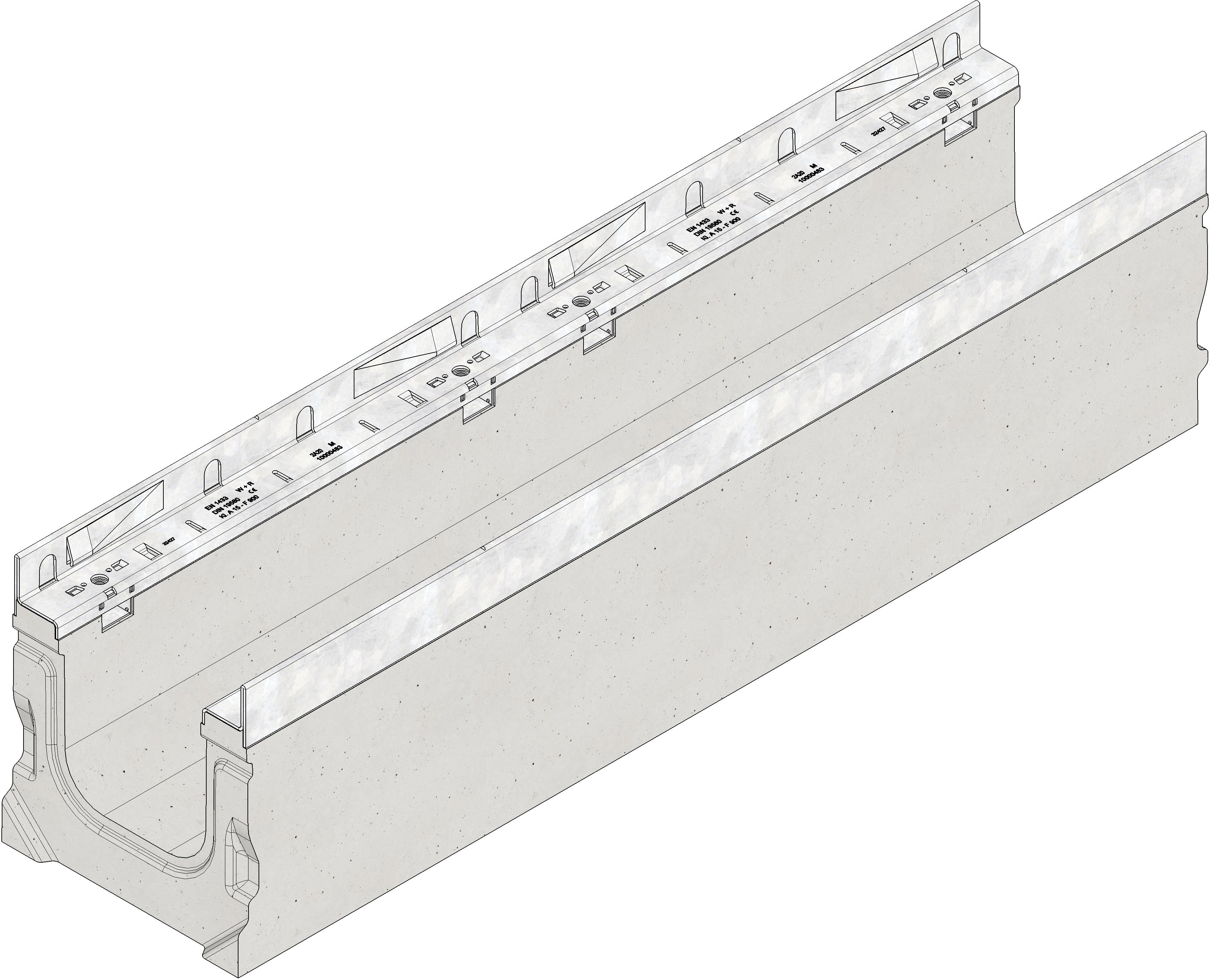

Product image
Technical drawing
Drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
32056
Length
1000 mm
Width
240 mm
Height
255 mm
Weight
80.00 kg
Material
fibre-reinforced concrete, strip galvanized steel
Height of angle housing
40 mm
Nominal size
150
Internal channel cross-section
223 cm²
Fall
-
Fixing type
SIDE-LOCK, Bolting
Type according to DIN EN 1433
M
Channel material
fibre-reinforced concrete
Material of angle housing
strip galvanized steel
Regulations
EN 1433, DIN 19580
Sales text
SERVICE CHANNEL FASERFIX SUPER 150 channel type 01 angular with galvanised angle housing, 1m
Product description
SERVICE channel FASERFIX SUPER 150 type 01 angular -channel made of fibre reinforced concrete, loading capacity from A 15 up to E 600 according to EN 1433, CE compliant, with galvanised steel angle housing and boltless quick-locking system SIDE-LOCK, eightfold locking, without crossing bars in the channel line, with sealing groove, grating inlay depth 40 mm, L/W/H 1000x240x255 mm, item no. 32056
Packaging unit
15
Declaration of Performance
Tender Texts
Installation example
Pavement class A 15 - C 250
Asphalt class A 15 - D 400
Concrete class A 15 - F 900
Pavement / large-size slab class D 400
Pavement class A 15 - C 250
Asphalt class A 15 - D 400
Concrete class C 250 - D 400
Pavement class D 400
Asphalt class E 600
Concrete class E 600
Pavement class A 15 - C 250
Asphalt class A 15 - D 400
Asphalt class A 15 - E 600
Concrete class A 15 - F 900
Pavement / large-size slab class D 400
Concrete class E 600
Concrete class F 900
Pavement class A 15 - C 250
Concrete class C 250 - D 400
Pavement class D 400
Asphalt class E 600
Asphalt class F 900
Asphalt class A 15 - B 125
Pavement class A 15 - C 250
Asphalt class C 250
Concrete class C 250
Concrete class E 600
Asphalt class A 15 - B 125
Pavement class A 15 - C 250
Asphalt class C 250 - D 400
Concrete class C 250 - D 400
Pavement class D 400
Asphalt class E 600
industrial flooring class A 15 - C 250
industrial flooring class D 400 - F 900
