Article No. 32070
SERVICE CHANNEL FASERFIX SUPER 200 made of fibre-reinforced concrete with 40 mm angle housing, class E 600
Type 020 E, 1,0 m
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

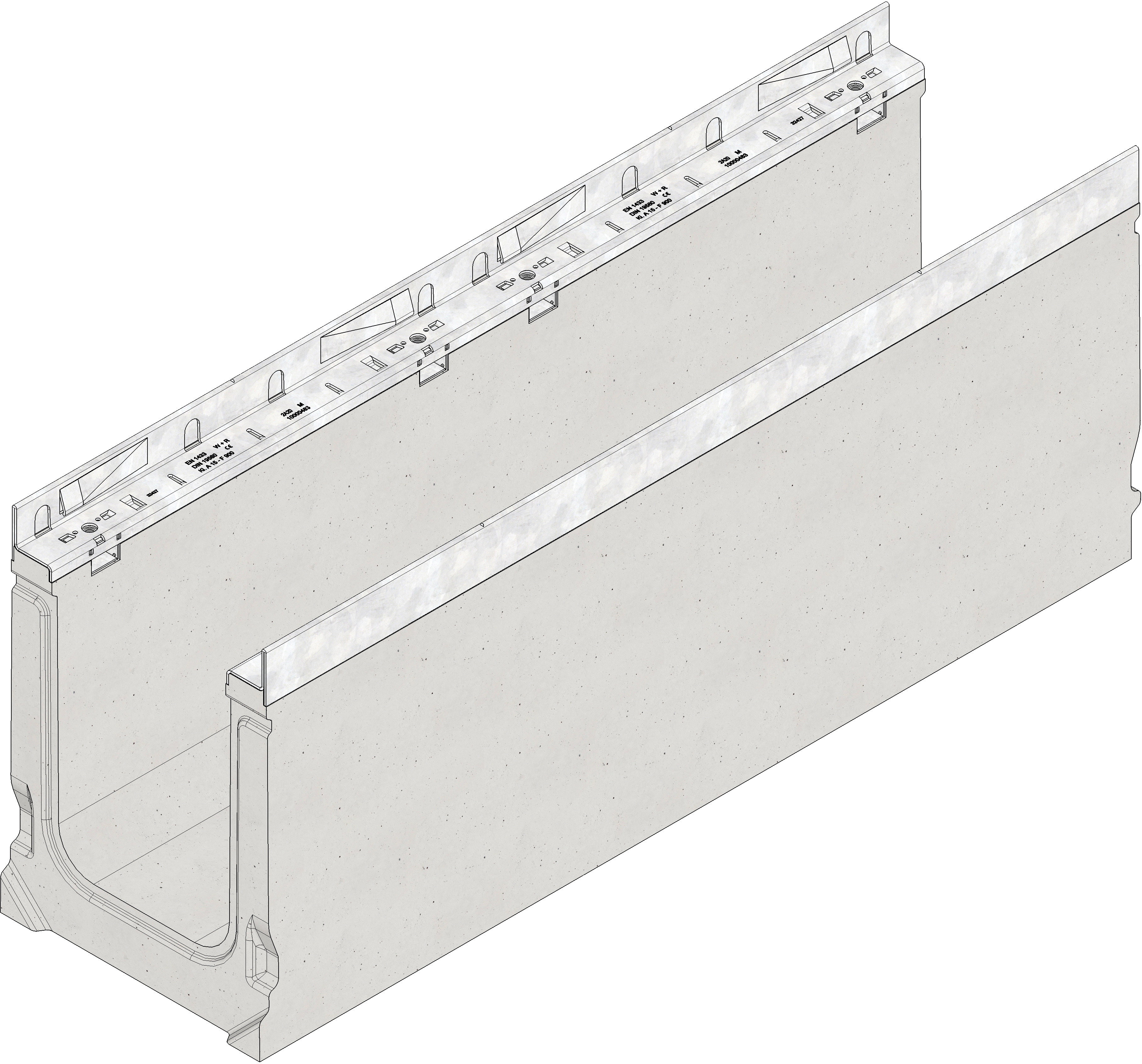

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
32070
Length
1000 mm
Width
290 mm
Height
400 mm
Weight
124.50 kg
Material
fibre-reinforced concrete, strip galvanized steel
Height of angle housing
40 mm
Nominal size
200
Internal channel cross-section
568 cm²
Fall
-
Fixing type
SIDE-LOCK, Bolting
Type according to DIN EN 1433
M
Channel material
fibre-reinforced concrete
Material of angle housing
strip galvanized steel
Regulations
EN 1433, DIN 19580
Sales text
SERVICE CHANNEL FASERFIX SUPER 200 channel type 020 angular with galvanised angle housing, 1m
Product description
SERVICE channel FASERFIX SUPER 200 type 020 angular -channel made of fibre reinforced concrete, loading capacity from A 15 up to E 600 according to to EN 1433, CE compliant, with galvanised steel angle housing and boltless quick-locking system SIDE-LOCK, eightfold locking, without crossing bars in the channel line, with sealing groove, grating inlay depth 40 mm, L/B/H 1000x290x400 mm, item no. 32070
Packaging unit
8
Tender Texts
Installation example
Pavement class A 15 - C 250
Asphalt class A 15 - D 400
Concrete class A 15 - F 900
Pavement / large-size slab class D 400
Pavement class A 15 - C 250
Asphalt class A 15 - D 400
Concrete class C 250 - D 400
Pavement class D 400
Asphalt class E 600
Concrete class E 600
Pavement class A 15 - C 250
Asphalt class A 15 - D 400
Asphalt class A 15 - E 600
Concrete class A 15 - F 900
Pavement / large-size slab class D 400
Concrete class E 600
Concrete class F 900
Pavement class A 15 - C 250
Concrete class C 250 - D 400
Pavement class D 400
Asphalt class E 600
Asphalt class F 900
Concrete class E 600
Asphalt class A 15 - B 125
Pavement class A 15 - C 250
Asphalt class C 250 - D 400
Concrete class C 250 - D 400
Pavement class D 400
Asphalt class E 600
Asphalt class A 15 - B 125
Pavement class A 15 - B 125
Concrete class A 15 - C 250
Asphalt class C 250
Pavement class C 250
Asphalt class A 15 - B 125
Pavement class A 15 - C 250
Asphalt class C 250
Concrete class C 250
industrial flooring class A 15 - C 250
industrial flooring class D 400 - F 900
