Article No. 32101
SERVICE CHANNEL FASERFIX SUPER 500 made of fibre-reinforced concrete with 40 mm angle housing, class E 600
Type 01, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

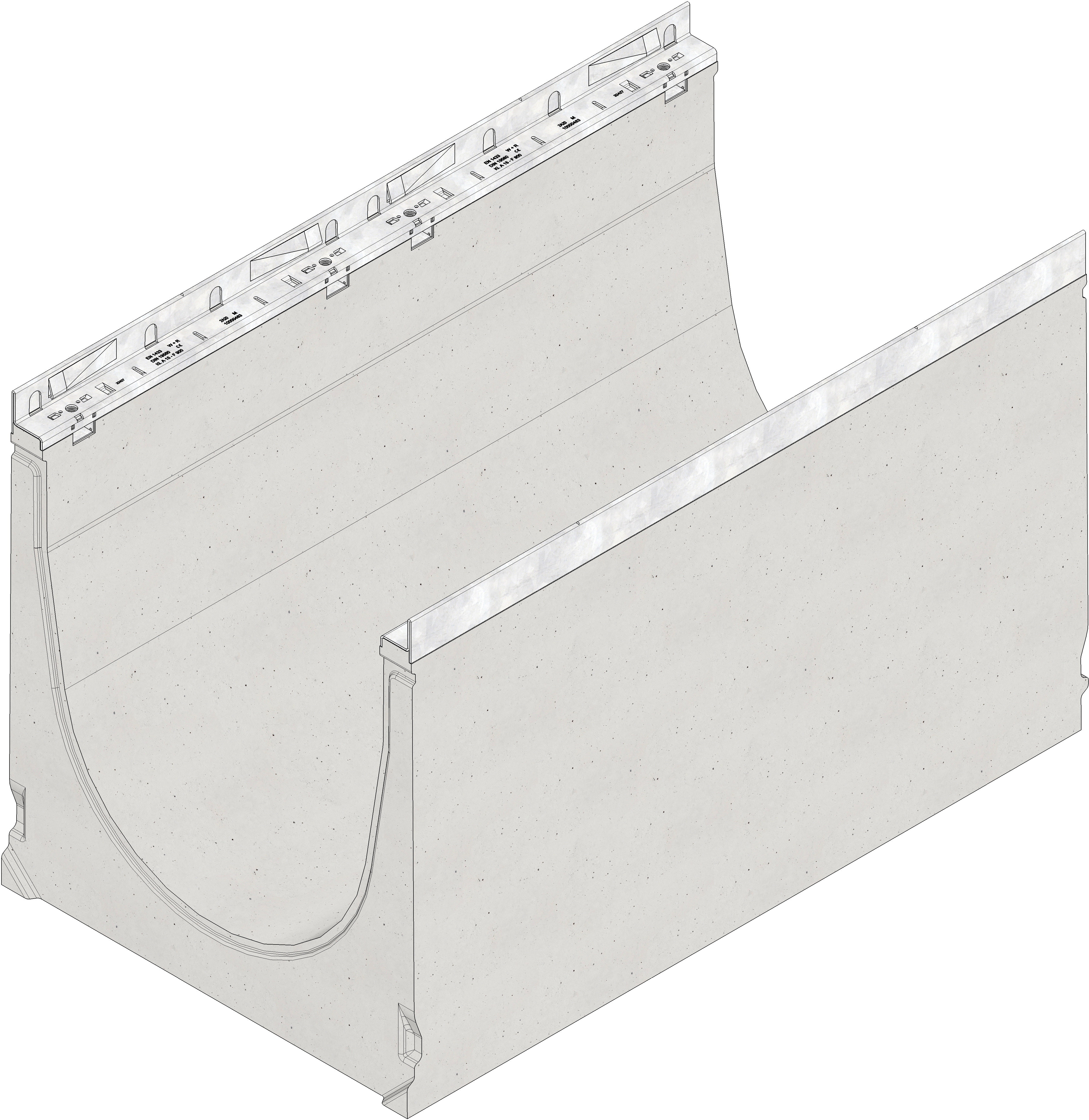

Product image
Technical drawing
Drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
32101
Length
1000 mm
Width
590 mm
Height
630 mm
Weight
318.50 kg
Material
fibre-reinforced concrete, Steel with zinc-magnesium coating
Height of angle housing
40 mm
Nominal size
500
Internal channel cross-section
-
Fall
-
Sales text
SIDE-LOCK, Bolting
Sales text
M
Channel material
fibre-reinforced concrete
Material of angle housing
Steel with zinc-magnesium coating
Sales text
EN 1433, DIN 19580
Sales text
SERVICE CHANNEL FASERFIX SUPER 500 Channel body type 01 with edge frames made of galvanised steel, 1 m
Sales text
SERVICE channel FASERFIX SUPER 500 type 01 -channel made of fibre reinforced concrete, loading capacity from A 15 up to F 900 according to EN 1433, CE compliant, with galvanised steel angle housing and boltless quick-locking system SIDE-LOCK, eightfold locking, without crossing bars in the channel line, with sealing groove, L/W/H 1000x590x630 mm, item no. 32101
Sales text
2
Declaration of Performance
Tender Texts
Installation example
Pavement class A 15 - C 250
Asphalt class D 400
Asphalt class D 400 - E 600
Concrete class D 400 - E 600
Pavement / large-size slab class D 400
Concrete class E 600
Concrete class F 900
Pavement class A 15 - C 250
Concrete class D 400
Pavement class D 400
Asphalt class E 600
Asphalt class F 900
industrial flooring class A 15 - C 250
industrial flooring class D 400 - F 900
