Article No. 32071
SERVICE CHANNEL RECYFIX PRO 200 made of polypropylene with 20 mm integrated polypropylene angle housing, class C 250
Type 010, 1,0 m
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

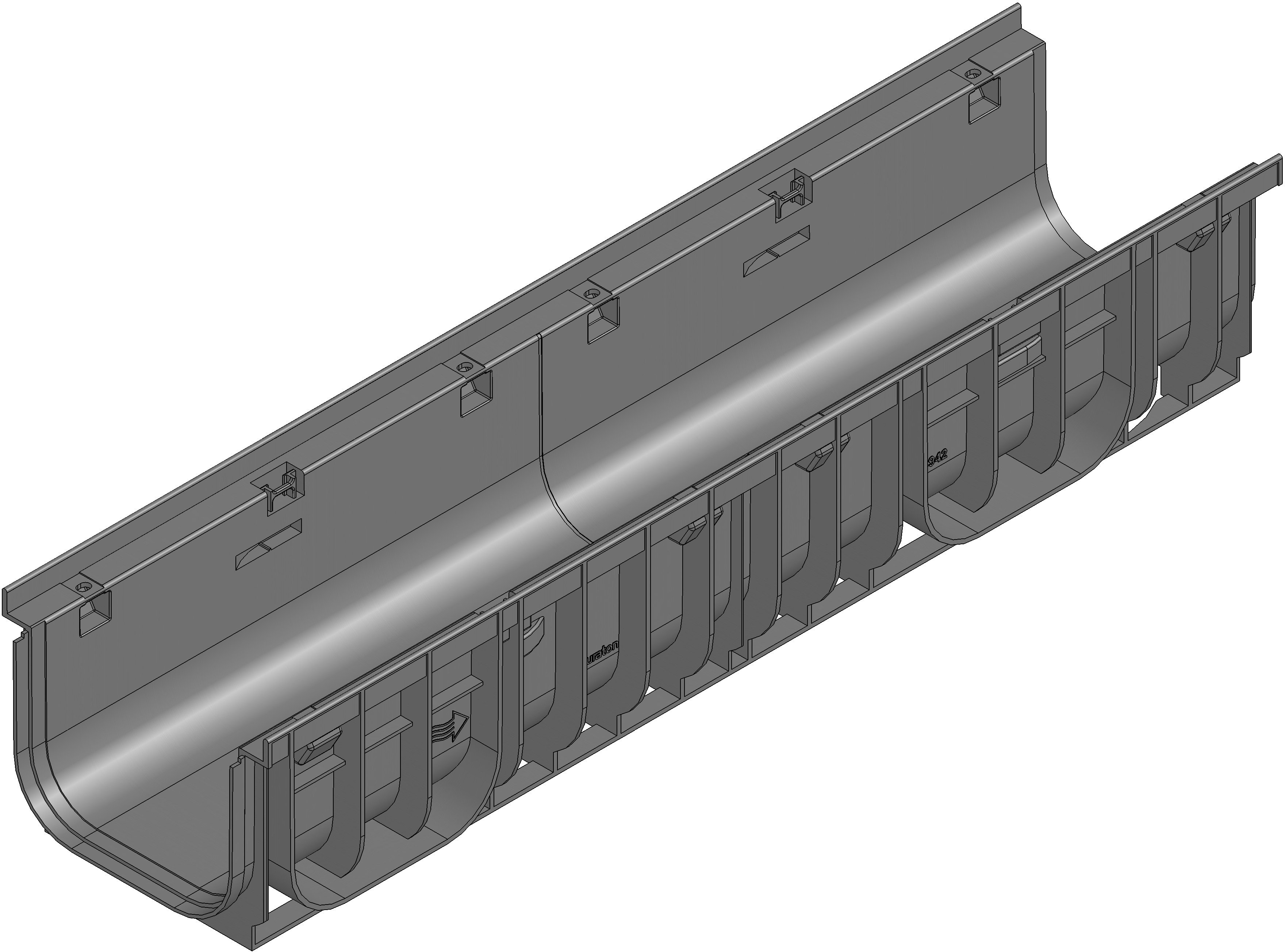

Product image
Technical drawing
Drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
32071
Length
1000 mm
Width
262 mm
Height
200 mm
Weight
3.17 kg
Material
recycled, modified Polypropylene
Height of angle housing
20 mm
Nominal size
200
Internal channel cross-section
294 cm²
Fall
-
Fixing type
Locking handle
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Regulations
EN 1433, DIN 19580
Sales text
SERVICE CHANNEL RECYFIX PRO 200 channel type 010
Product description
SERVICE channel RECYFIX PRO 200 type 010 - channel made of modified PP, with integrated angle housing, with vertical connection possibility DN/OD 110/160, loading capacity from A 15 - D 400 according to EN 1433, L/W/H 1000x262x200 mm, item no. 32071
Packaging unit
32
Declaration of Performance
Tender Texts
Installation example
Pavement class A 15 - C 250
Asphalt class A 15 - D 400
Concrete class A 15 - F 900
Pavement / large-size slab class D 400
Pavement class A 15 - C 250
Asphalt class A 15 - D 400
Concrete class C 250 - D 400
Pavement class D 400
Asphalt class E 600
Concrete class E 600
Pavement class A 15 - C 250
Asphalt class A 15 - D 400
Asphalt class A 15 - E 600
Concrete class A 15 - F 900
Pavement / large-size slab class D 400
Concrete class E 600
Concrete class F 900
Pavement class A 15 - C 250
Concrete class C 250 - D 400
Pavement class D 400
Asphalt class E 600
Asphalt class F 900
Concrete class E 600
Asphalt class A 15 - B 125
Pavement class A 15 - C 250
Asphalt class C 250 - D 400
Concrete class C 250 - D 400
Pavement class D 400
Asphalt class E 600
Asphalt class A 15 - B 125
Pavement class A 15 - B 125
Concrete class A 15 - C 250
Asphalt class C 250
Pavement class C 250
Asphalt class A 15 - B 125
Pavement class A 15 - C 250
Asphalt class C 250
Concrete class C 250
industrial flooring class A 15 - C 250
industrial flooring class D 400 - F 900
