Article No. 32105
SERVICE CHANNEL RECYFIX STANDARD 100 made of polypropylene with polypropylene frame, class A 15
Type 010, 1,0 m
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

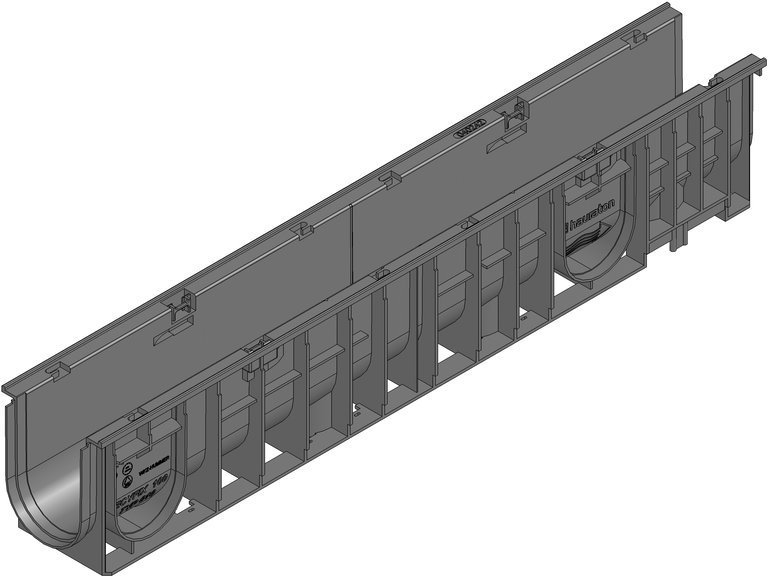

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
32105
Length
1000 mm
Width
150 mm
Height
185 mm
Weight
3.00 kg
Material
recycled, modified Polypropylene
Height of angle housing
4 mm
Nominal size
100
Internal channel cross-section
142 cm²
Fall
-
Fixing type
Loose blatant, Slotted grating, Locking handle
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Regulations
EN 1433, DIN 19580
Sales text
SERVICE CHANNEL RECYFIX STANDARD 100 channel type 010, 1m
Product description
SERVICE CHANNEL RECYFIX STANDARD 100 type 010 - channel made of modified PP, with lateral and vertical connection possibility DN 100, loading capacity from A 15 - C 250 according to EN 1433, in conjunction with slotted covers up to class D 400 according to EN 1433, L/W/H 1000x160x185 mm, item no. 32105
Packaging unit
70
Declaration of Performance
Tender Texts
Installation example
Pavement class A 15 - C 250
Asphalt class A 15 - D 400
Concrete class A 15 - F 900
Pavement / large-size slab class D 400
industrial flooring class A 15 - C 250
industrial flooring class D 400 - F 900
