Article No. 33344
SLOTTED COVERS 100, neck height 105 mm, class D 400
Asymmetrical SW 10 mm, galvanised, 0,5 m
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

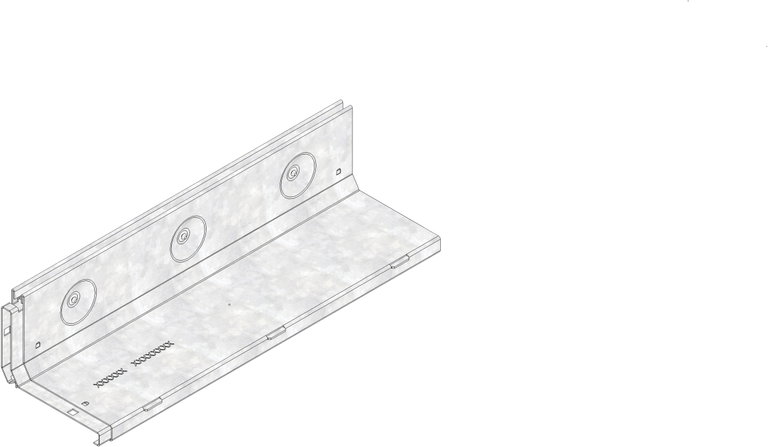

Product image
Technical drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
33344
Length
500 mm
Width
156 mm
Height
134 mm
Weight
3.18 kg
Material
strip galvanized steel
Intake cross-section
100.0 cm²/m
Nominal size
100
Inlet opening
10
Regulations
in accordance with EN 1433
Sales text
Slotted cover SW 10 mm, neck height 105 mm, galvanised, asymmetric, with integrated, full-surface connection element, cl. D 400, FASERFIX KS/ FASERFIX STANDARD/ RECYFIX PRO 100, 0,5 m
Product description
FASERFIX KS/ FASERFIX STANDARD/ RECYFIX PRO 100 -Slotted cover SW 10 mm, neck height 105 mm, galvanised, asymmetric, with integrated, full-surface connection element, loading capacity from A 15 up to D 400, length 500 mm, item no. 33344
Packaging unit
160
Declaration of Performance
Tender Texts
Installation example
Pavement class A 15
Pavement class B 125
Pavement class C 250
Pavement class C 250
Asphalt class D 400
Asphalt class D 400
Pavement class D 400
