Article No. 33360

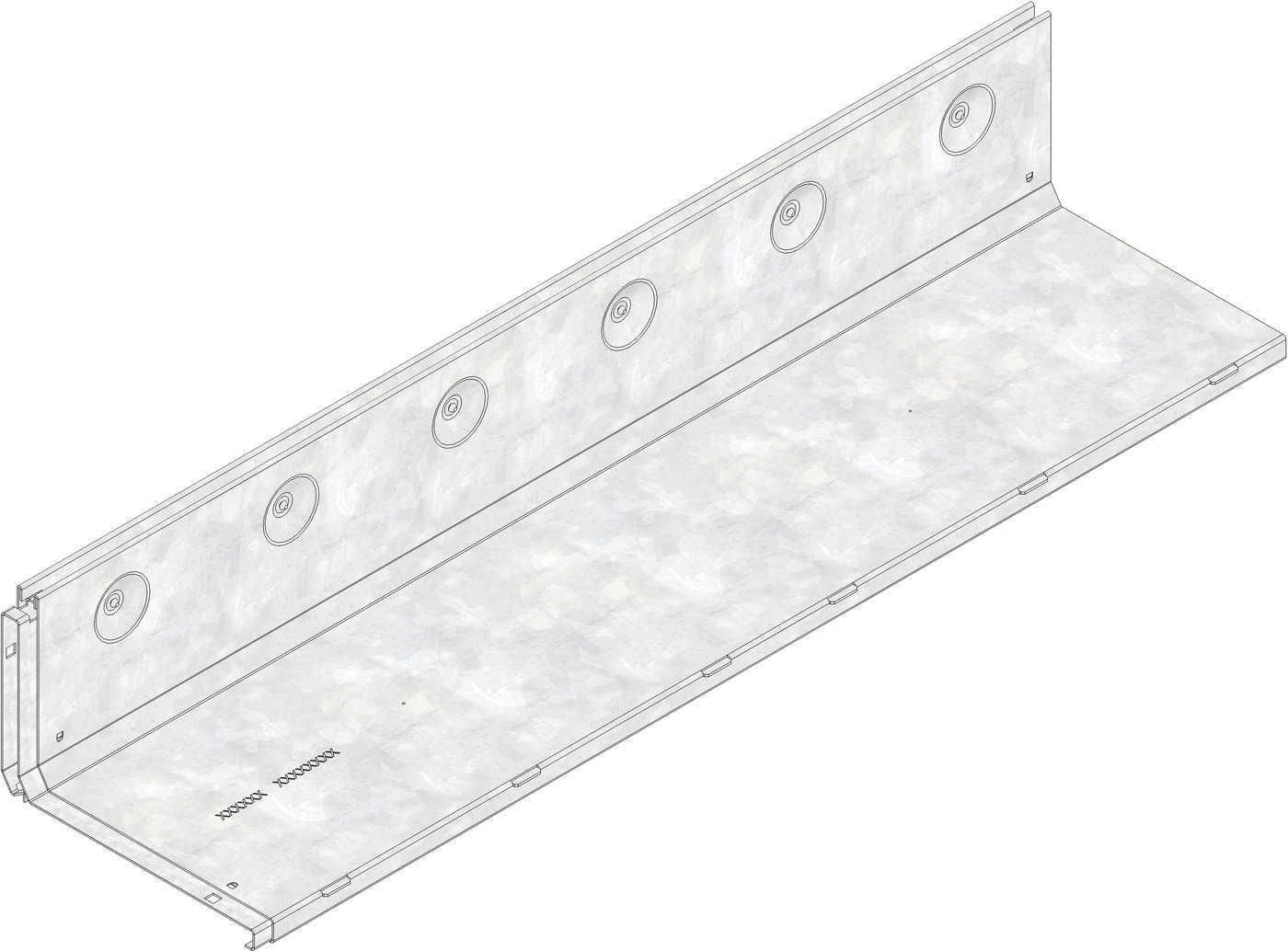

SLOTTED COVERS 200, neck height 160, class C 250
asymmetric, SW 12 mm, galvanised, 1,0 m
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

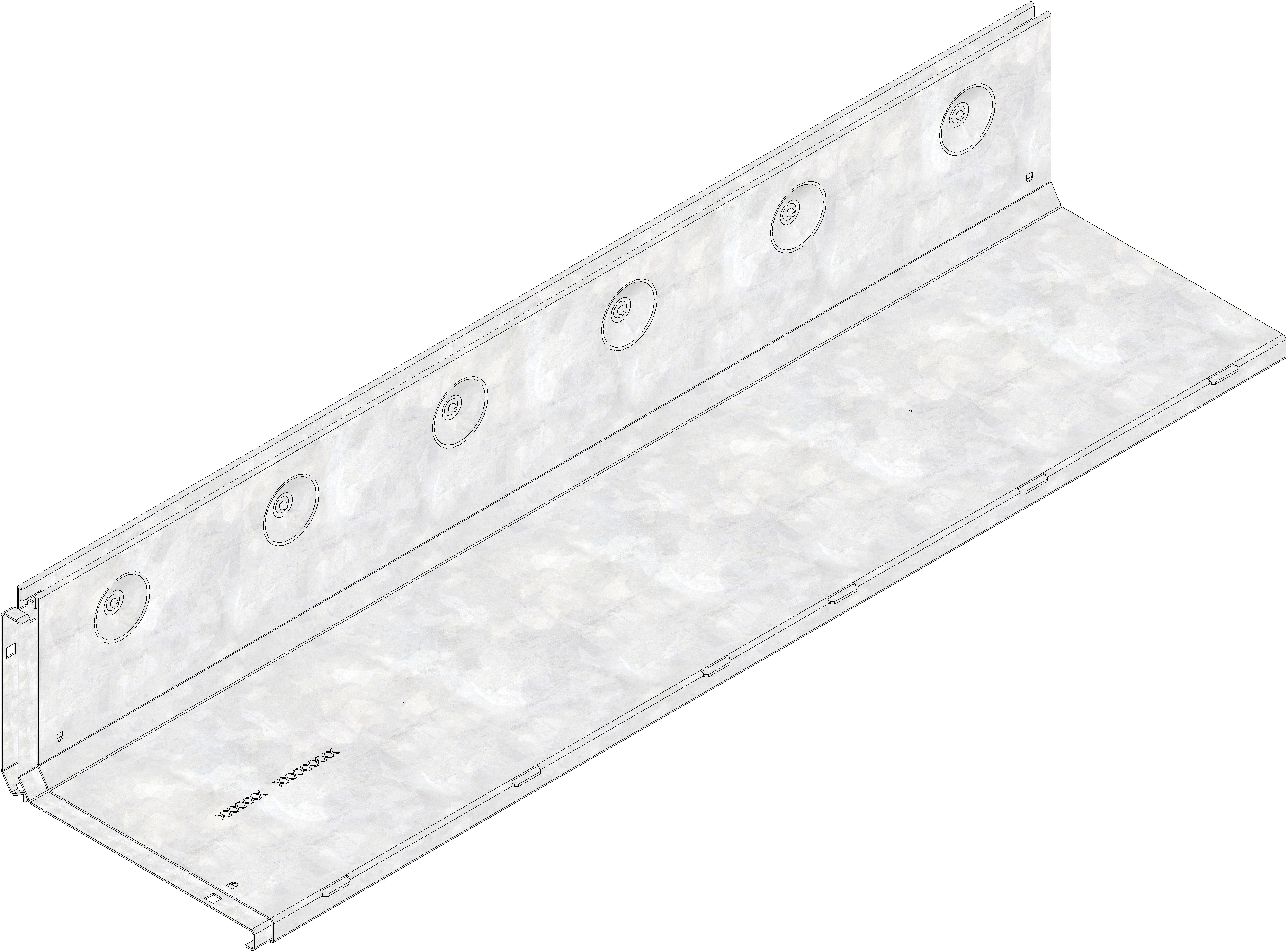

Product image
Technical drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
33360
Length
1000 mm
Width
256 mm
Height
189 mm
Weight
10.04 kg
Material
strip galvanized steel
Intake cross-section
120.0 cm²/m
Nominal size
200
Inlet opening
12
Regulations
EN 1433, DIN 19580
Sales text
Slotted cover SW 12 mm, neck height 160 mm, galvanised, asymmetric, with integrated, full-surface connection element, cl. C 250, FASERFIX KS/ RECYFIX PRO 200, 1 m
Product description
FASERFIX KS/ RECYFIX PRO 200 -slotted cover SW 12 mm, neck height 160 mm, galvanised, asymmetric, with integrated, full-surface connection element, loading capacity from A 15 up to C 250, length 1000 mm, item no. 33360
Packaging unit
32
Tender Texts
Installation example
Pavement class C 250
Asphalt class D 400
Asphalt class D 400
Pavement class D 400
