Article No. 7525
SPORTFIX PRO 100, accessories
for NW 100, with silt bucket made of composite and FIBRETEC design slotted grating SW 110/9 mm, in the colour black, 0,5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

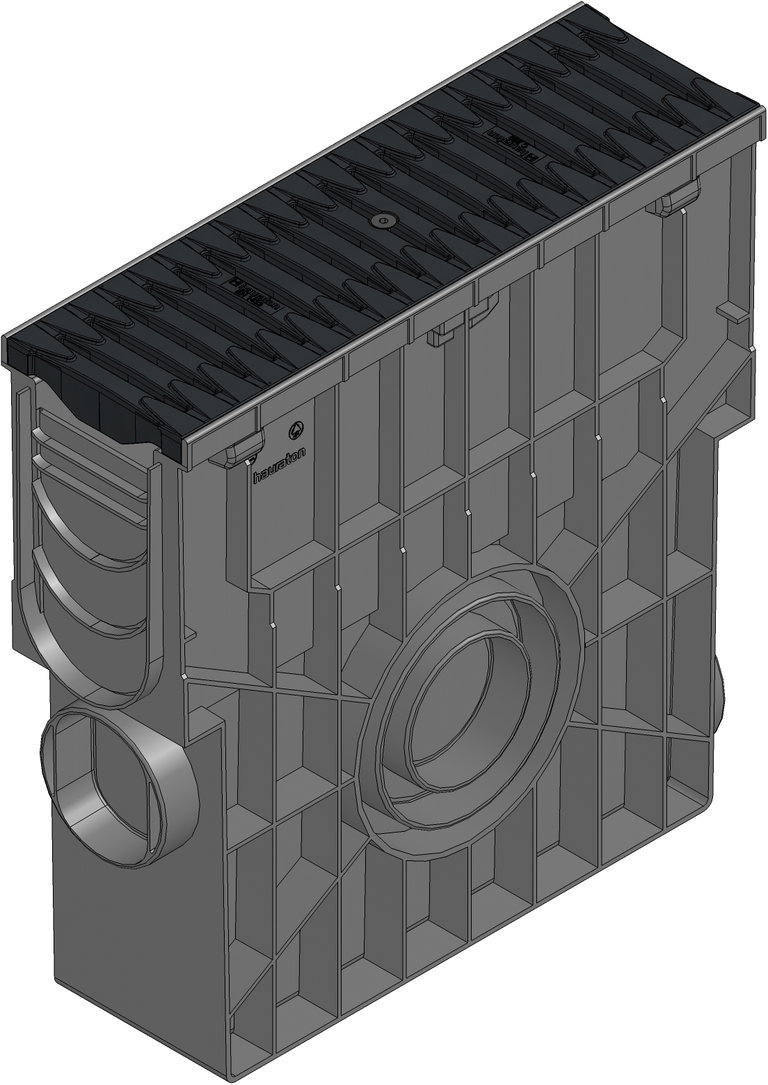

Product image
Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
7525
Einlegetiefe
20 mm
Weight
5.89 kg
Material
recycled, modified Polypropylene, RECYFIX Material (recycled PA), reinforced Polyamide, Steel black galvanised
Intake cross-section
372.0 cm²/m
Nominal size
100
Material grating
reinforced Polyamide
Sales text
EN 1433 + IAKS
Sales text
Sump unit with integrated edge frames, with FIBRETEC Design slotted grating SW 110/9 mm, black, cl. C 250, locked, with silt bucket made of composite, SPORTFIX PRO 100, 0.5 m
Sales text
SPORTFIX PRO 100 - Trash box made of modified PP, according to EN 1433, with integrated angle housing, with optional connection on four sides (DN/OD 110 on the front side, DN/OD 110/160 on the sides), with removable silt bucket made of composite, suitable for both-sided connection of channels type SPORTFIX PRO 100, with FIBRETEC design slotted grating slot width 9 mm, black, made of reinforced polyamide, with horizontal thrust protection and locking, loading capacity from A 15 - C 250, L/B/H 500x160x504 mm, item no. 7525
Sales text
28
