Article No. 7512
SPORTFIX PRO 100
Type 010 with GUGI-Grating made of PA-GF, MW 15/25 mm, black, locked, 0,5 m
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

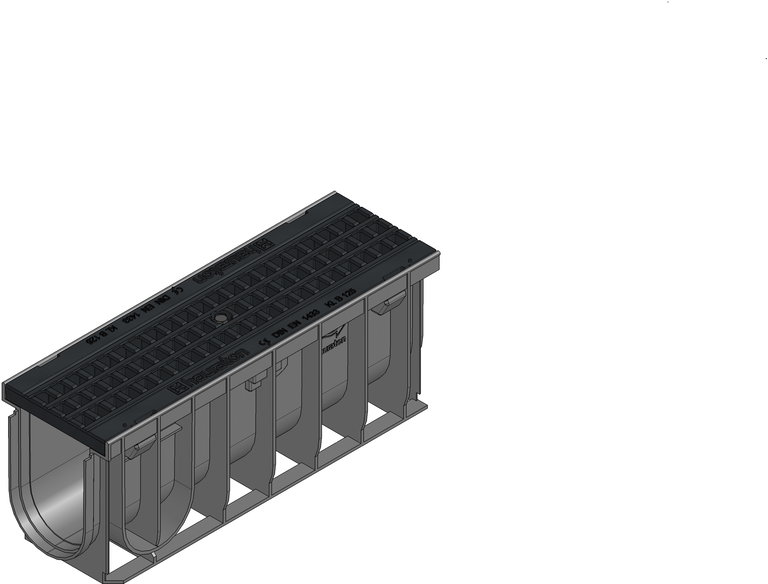

Product image
Technical drawing
Drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
7512
Length
500 mm
Width
160 mm
Height
200 mm
Weight
2.53 kg
Material
recycled, modified Polypropylene, RECYFIX Material (recycled PA), reinforced Polyamide, Steel black galvanised
Intake cross-section
444.0 cm²/m
Nominal size
100
Internal channel cross-section
142 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material grating
reinforced Polyamide
Regulations
EN 1433, EN 1433 + IAKS, DIN 19580
Sales text
SPORTFIX PRO 100 Type 010 Channel with GUGI-Grating made of PA-GF, MW 15/25, black, length 0,5m, locked
Product description
SPORTFIX PRO 100 type 010 - channel body made of modified PP, with integrated angle housing, with GUGI grating MW 15/25, black, with horizontal thrust resistance and locking, loading capacity from A 15 -B 125 according to EN 1433, L/W/H 500x160x200 mm, item no. 7512
Packaging unit
70
Tender Texts
Installation example
running track / playing field class A 15
