Article No. 7869
SPORTFIX ROME (I) Channels
Type 010 with GUGI-Mesh grating made of PA-GF, MW 15/25 mm, black, for securing of artificial turf, 0,5 m
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

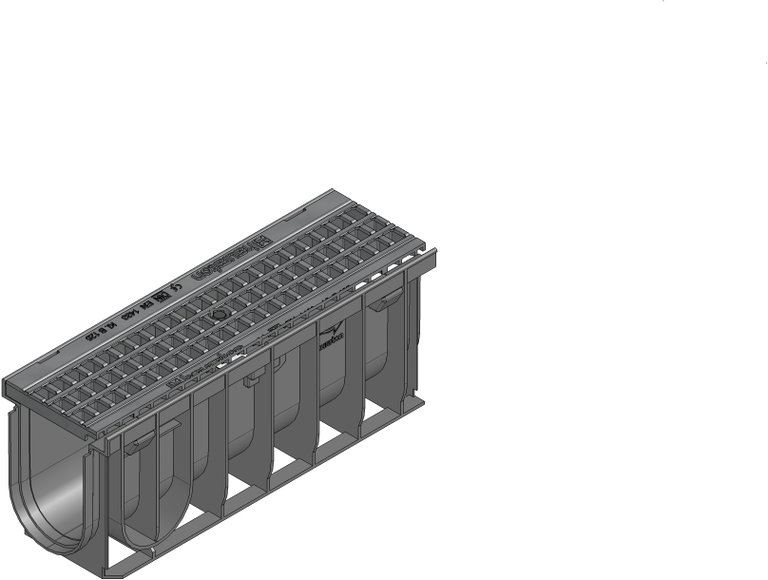

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
7869
Length
500 mm
Width
160 mm
Height
200 mm
Weight
2.30 kg
Material
recycled, modified Polypropylene, RECYFIX Material (recycled PA), reinforced Polyamide, Steel black galvanised
Intake cross-section
444.0 cm²/m
Nominal size
100
Internal channel cross-section
142 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material grating
reinforced Polyamide
Sales text
SPORTFIX channel ROME I type 010 with mesh grating for securing of unfilled artificial turf, 0,5 m
Product description
SPORTFIX Rome I type 010 channel made of modified PP, with PP mesh grating for securing of unfilled artificial turf, L/W/H 500x160x200 mm, item no. 7869
Packaging unit
70
Tender Texts
Installation example
running track / artificial turf class A 15
