Article No. 69051
STEELFIX REGULAR 115
Longitudinal grating bar distance 12 mm, galvanised, 0,5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Product image

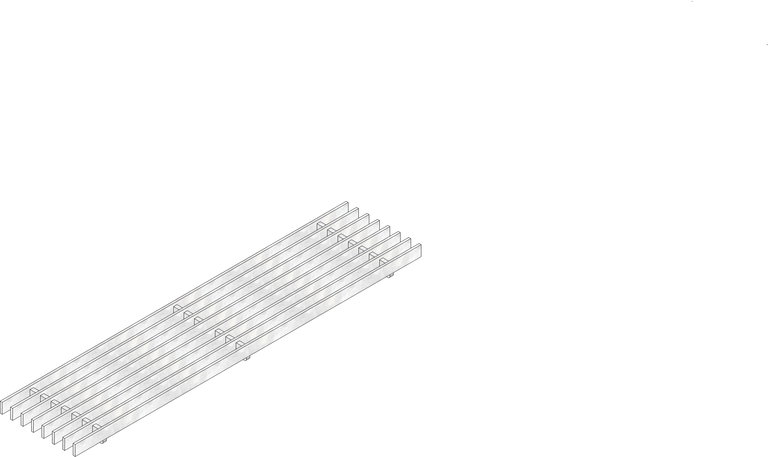

Technical drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
69051
Length
500 mm
Width
108 mm
Height
20 mm
Einlegetiefe
20 mm
Weight
1.60 kg
Material
hot-dip galvanised steel
Intake cross-section
811.0 cm²/m
Nominal size
115
Inlet opening
0
Sales text
Locking handle
Material grating
hot-dip galvanised steel
Sales text
Longitudinal grating bar distance 12 mm, galvanised, cl. A 15, DACHFIX STEEL/STEELFIX REGULAR 115, 0.5 m
Sales text
DACHFIX STEEL/STEELFIX REGULAR 115 -longitudinal grating, bar distance 12 mm, galvanised, suitable for pedestrian traffic and wheelchair-accessible, installation length 500 mm, item no. 69051
Sales text
-
