Article No. 60955

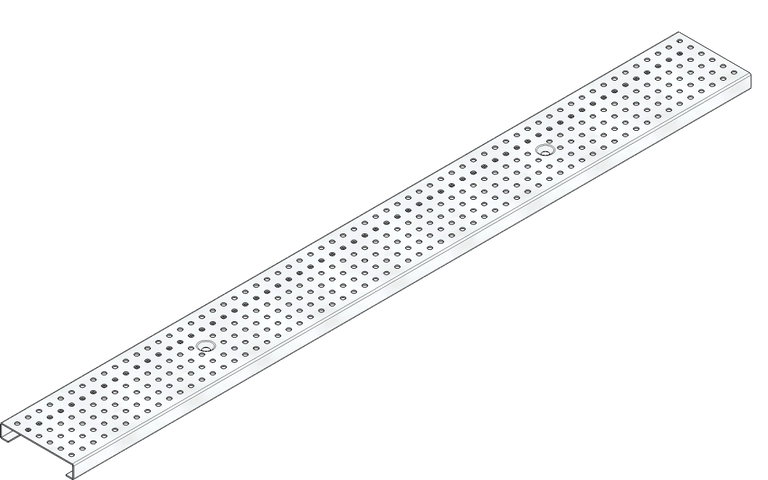

STEELFIX REGULAR 115
Perforated grating Ø 6 mm, stainless steel, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Product image
Technical drawing
Drawing (CAD)
Top view
Data Sheet
Technical information and metrics
Article No.
60955
Length
1000 mm
Width
108 mm
Height
20 mm
Einlegetiefe
20 mm
Weight
1.70 kg
Material
Stainless steel 1.4301
Intake cross-section
104.0 cm²/m
Nominal size
115
Inlet opening
0
Sales text
Loose blatant
Material grating
Stainless steel 1.4301
Sales text
Perforated grating Ø 6 mm, stainless steel, cl. A 15, DACHFIX RESIST/DACHFIX STEEL/ STEELFIX REGULAR 115, 1 m
Sales text
DACHFIX RESIST/DACHFIX STEEL/STEELFIX REGULAR 115 -perforated grating, stainless steel CNS 1.4301 (AISI 304), loading class A 15, installation length 1000 mm, item no. 60955
Sales text
-
