Article No. 66020
STEELFIX REGULAR 205, height 45 mm
Type 45, stainless steel, 1,0 m
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

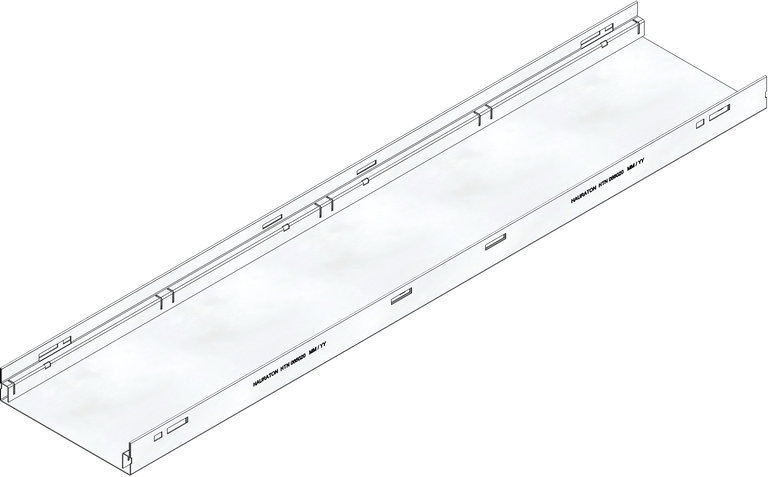

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
66020
Length
1000 mm
Width
205 mm
Height
45 mm
Weight
3.05 kg
Material
Stainless steel 1.4301
Height of angle housing
20 mm
Nominal size
205
Internal channel cross-section
-
Fall
-
Fixing type
Locking handle
Type according to DIN EN 1433
M
Channel material
Stainless steel 1.4301
Sales text
STEELFIX REGULAR 205 channel type 45, stainless steel, construction height 45 mm, 1 m
Product description
STEELFIX REGULAR 205 - channel type 45, made of stainless steel CNS 1.4301 (AISI 304), suitable for pedestrian traffic and wheelchair-accessible, grating support tilted inwards, channel bottom and wall closed, L/W/H 1000x205x45 mm, item no. 66020
Packaging unit
-
Tender Texts
Installation example
wheelchair accessible, drainage via drain box, vertical connection
wheelchair accessible, drainage via drain box, horizontal connection
Wheelchair-accessible, drainage via channel connection, vertical, barrier-free transition (2 cm)
wheelchair-accessible, drainage via channel connection, vertical, threshold-free transition (0 cm)
wheelchair-accessible, drainage via cross-intersection and DACHFIX POINT
wheelchair-accessible, drainage closed via cross-intersection (bottom plate), vertical connection
Wheelchair-accessible, drainage via closed (doubled) cross-intersection, vertical connection
wheelchair-accessible, drainage via cross-intersection and DACHFIX POINT
wheelchair accessible, drainage via drain box, vertical connection
wheelchair accessible, drainage via drain box, horizontal connection
Wheelchair-accessible, drainage via channel connection, vertical, barrier-free transition (2 cm)
wheelchair-accessible, drainage via channel connection, vertical, threshold-free transition (0 cm)
flagstone surface class Walkable
