Article No. 33000
Trash boxes
for NW 100, for type 80F / 100F and type 01 - 010, with lateral integrated PVC-U socket DN/OD 110, with galvanised steel angle housing and silt bucket made of composite, 0,5 m
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

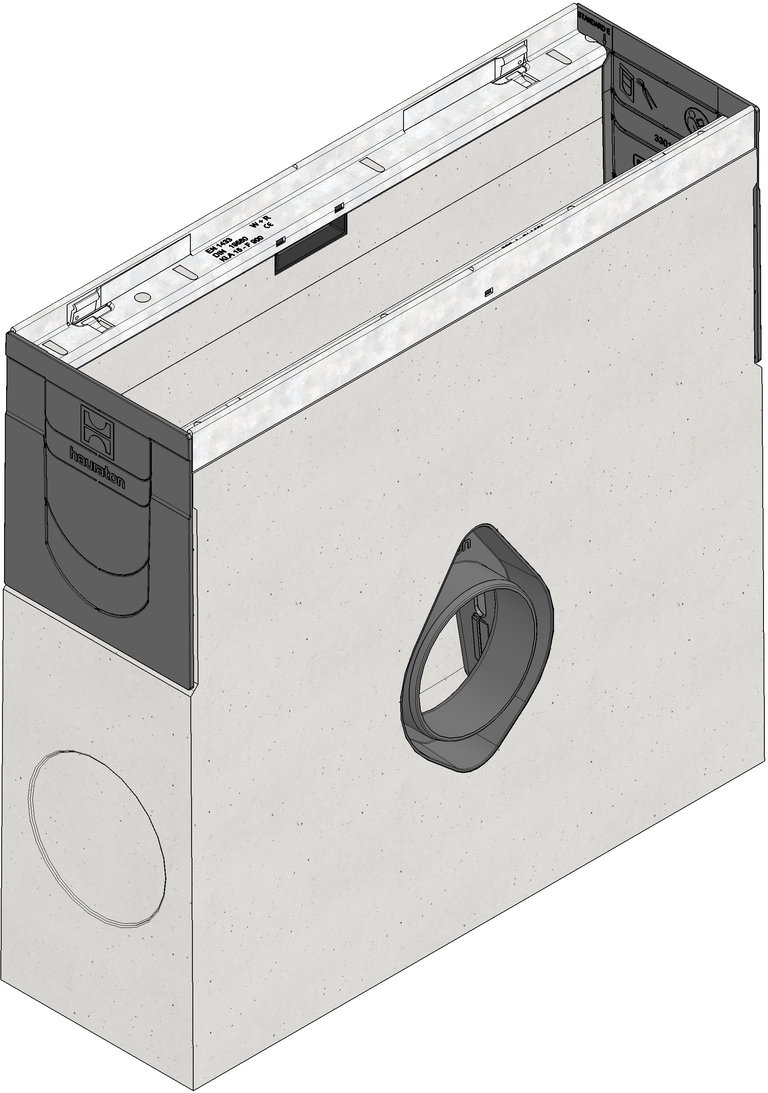

Product image
Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
33000
Length
500 mm
Width
160 mm
Height
503 mm
Weight
48.00 kg
Material
fibre-reinforced concrete, strip galvanized steel
Nominal size
100
Sales text
EN 1433, DIN 19580
Sales text
Trash box with galvanised steel angle housing, with silt bucket made of composite and two end caps, for channels type 80/100F + 01 - 010, FASERFIX KS 100, 0,5 m
Sales text
FASERFIX KS 100 type 010 - Trash box made of fibre reinforced concrete, loading capacity from A 15 - F 900 according to EN 1433, CE compliant, with galvanised steel angle housing and boltless quick-locking system SIDE-LOCK, fourfold locking, three-sided connection possibility DN/OD 110, with lateral integrated PVC-U pipe connections DN/OD 110, with silt bucket made of composite and two end caps, suitable for both-sided connection of channels type 80/100F and 01 - 010 L/W/H 500x160x503 mm, item no. 33000
Sales text
16
