Article No. 40259
Trash boxes
for NW 100, with plastic bucket and GUGI-Ductile iron mesh grating MW 15/25 mm, black, class C 250, locked, 0,5 m
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

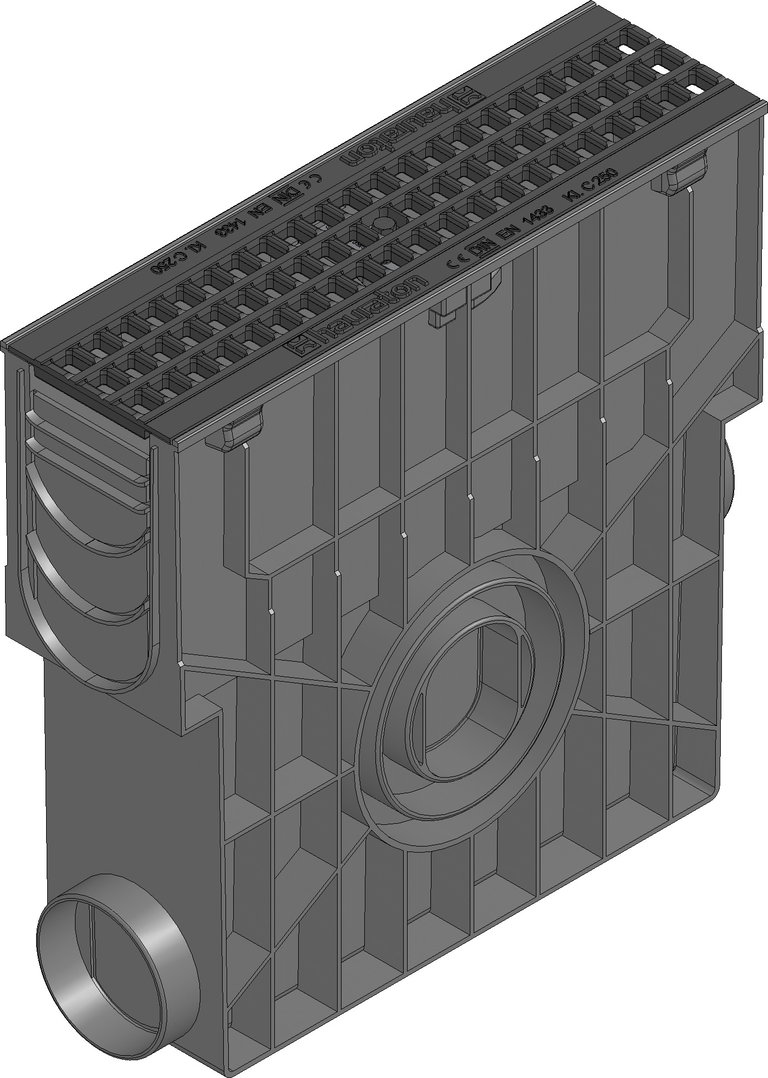

Product image
Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
40259
Weight
7.16 kg
Material
Ductile iron GJS 500-7, recycled, modified Polypropylene, RECYFIX Material (recycled PA), Steel black galvanised
Intake cross-section
453.0 cm²/m
Nominal size
100
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
Trash box with GUGI-ductile iron mesh grating MW 15/25, black, cl. C 250, with locking device, silt bucket made of composite, RECYFIX STANDARD 100, 0,5 m
Product description
RECYFIX STANDARD 100 - Trash box made of modified PP, optional connection on four sides (DN/OD 110 on the front side, DN/OD 110/160 on both sides), with removable silt bucket made of composite, suitable for both-sided connection of channel types RECYFIX STANDARD 100, with GUGI ductile iron mesh grating, mesh width 15/25 mm, black, with locking device, loading capacity from A 15 - C 250 according to EN 1433, L/W/H 500x150x488 mm, item no. 40259
Packaging unit
28
