Article No. 48753
Trash boxes
for NW 100, with plastic bucket, with ductile iron grating, black, SW 10 mm, class E 600, 4-fold bolted, 0,5 m
Questions?

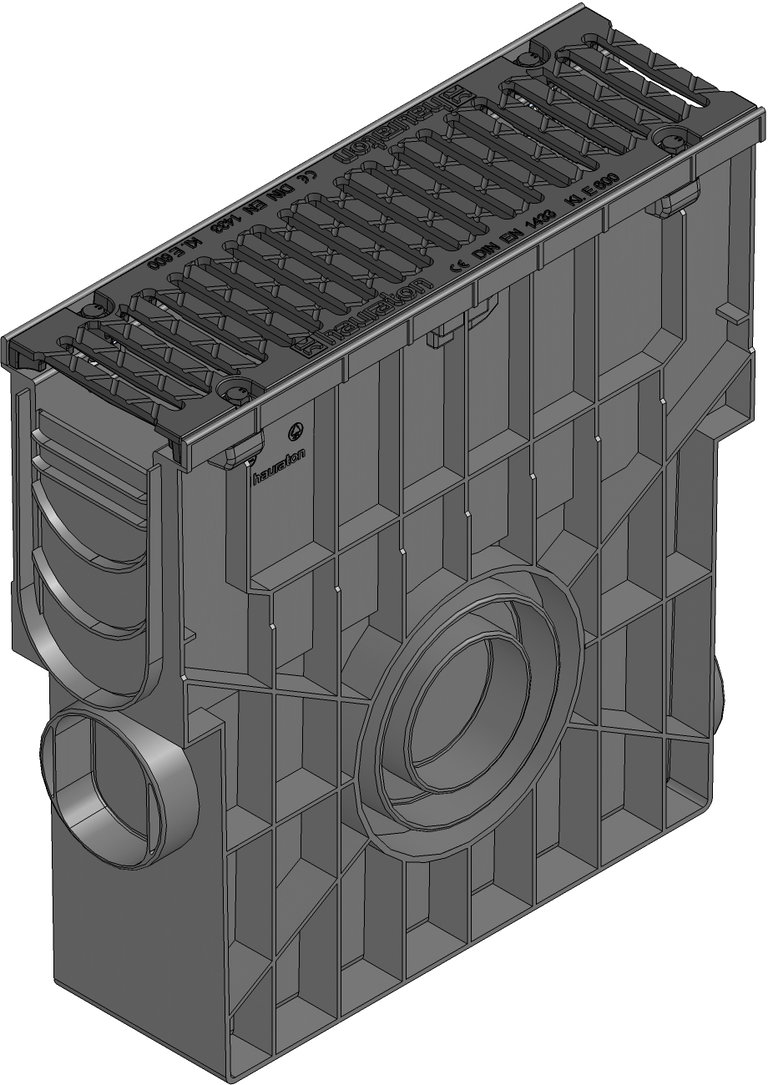

Product image
Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
48753
Weight
8.86 kg
Material
Ductile iron GJS 500-7, recycled, modified Polypropylene, Steel black galvanised
Intake cross-section
426.0 cm²/m
Nominal size
100
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
Trash box with ductile iron grating, SW 10 mm, black, cl. E 600, RECYFIX NC 100, 0,5 m
Product description
RECYFIX NC 100 - Trash box made of modified PP, according to EN 1433, with integrated angle housing, four-sided preformed pipe connection element (DN/OD 110 on the front side, DN/OD 110/160 on the sides), with removable silt bucket made of composite, suitable for both-sided connection of channels type RECYFIX NC 100, with ductile iron grating made of spheroidal ductile iron GJS 500-7, slot width 104/10 mm, black, loading capacity from A 15 - E 600, fourfold locking, L/W/H 500x160x504 mm, item no. 48753
Packaging unit
28
