Article No. 48754

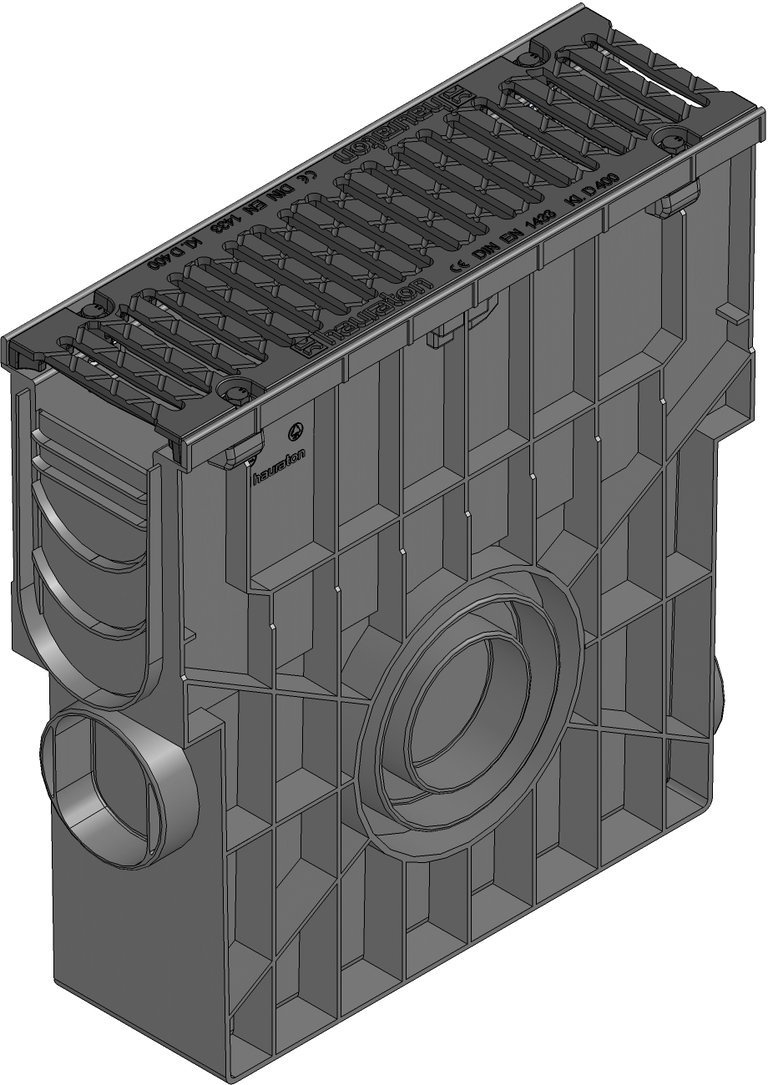

Trash boxes
for NW 100, with PP mud bucket and ductile iron grating, SW 10 mm, black, class D 400, 4-fold bolted, 0,5 m
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Technical information and metrics
Article No.
48754
Weight
8.79 kg
Material
Ductile iron GJS 500-7, recycled, modified Polypropylene, Steel black galvanised
Intake cross-section
426.0 cm²/m
Nominal size
100
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
Trash box with ductile iron grating SW 10 mm, black, cl. D 400, RECYFIX NC 100, 0,5 m
Product description
RECYFIX NC 100 - Trash box made of modified PP, according to EN 1433, with integrated angle housing, four-sided preformed pipe connection element (DN/OD 110 on the front side, DN/OD 110/160 on the sides), with removable silt bucket made of composite, suitable for both-sided connection of channel types RECYFIX NC 100, with ductile iron grating made of ductile spheroidal ductile iron GJS 500-7, slot width 104/10 mm, black, loading capacity from A 15 - D 400, fourfold locking, L/W/H 500x160x504 mm, item no. 48754
Packaging unit
28
