Article No. 23052
Trash boxes
for NW 200, with galvanised steel angle housing and galvanised bucket, 1,0 m
Questions?

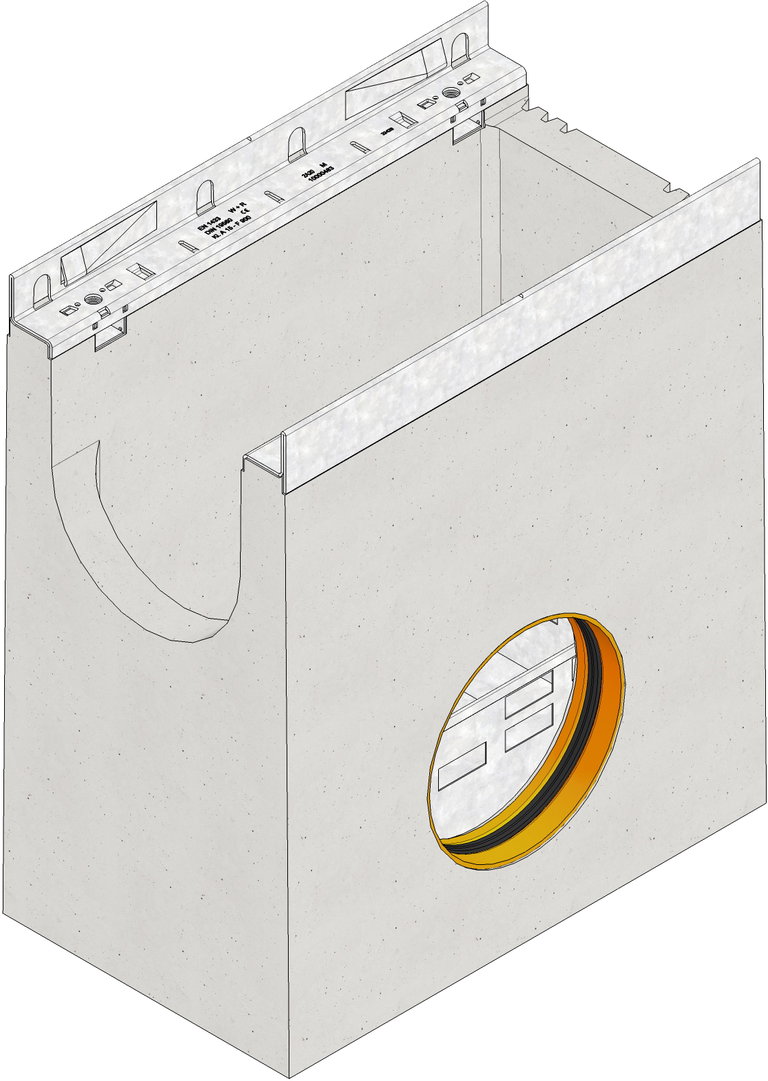

Product image
Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
23052
Length
500 mm
Width
290 mm
Height
582 mm
Weight
92.50 kg
Material
fibre-reinforced concrete, Steel with zinc-magnesium coating
Nominal size
200
Regulations
EN 1433, DIN 19580
Sales text
Trash box with galvanised steel angle housing and silt bucket made of galvanised steel, FASERFIX SUPER 200, 0,5 m
Product description
FASERFIX SUPER 200 - Trash box, one part, made of fibre reinforced concrete, loading capacity from A 15 -F 900 according to EN 1433, CE compliant, with galvanised steel angle housing and boltless quick-locking system SIDE-LOCK, fourfold locking, both-sided connection possibility (DN/OD 160 on the front, DN/OD 200 on the sides), with integrated PVC-U socket DN/OD 200, with removable silt bucket made of galvanised steel, suitable for both-sided connection of channel types SUPER 200, L/W/H 500x290x582 mm, item no. 23052
Packaging unit
4
