Article No. 3957
Trash boxes
for NW 200, with PVC-U socket and galvanised mud bucket, 1,0 m
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

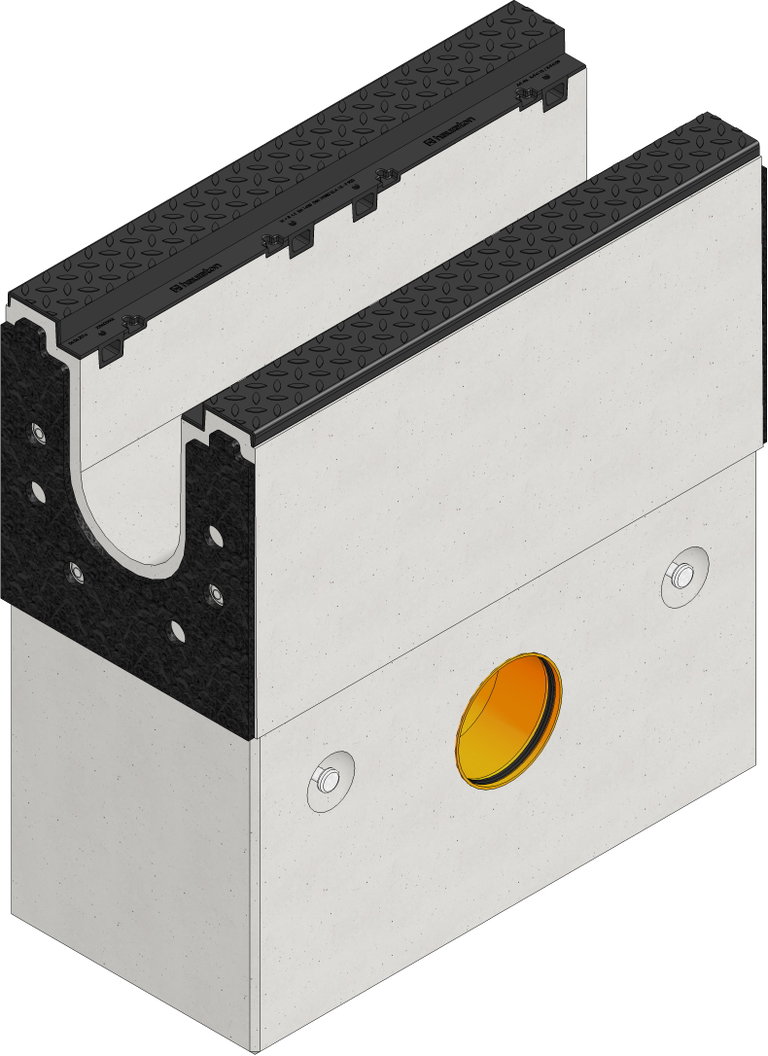

Product image
Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
3957
Length
1000 mm
Width
488 mm
Height
1070 mm
Weight
1052.00 kg
Material
Ductile iron GJS 500-7 with KTL-coating, fibre-reinforced concrete
Nominal size
200
Regulations
EN 1433, DIN 19580
Sales text
Trash box element with silt bucket made of galvanised steel, with PVC-U socket DN/OD 200, FASERFIX BIG SLG 200, 1 m
Product description
FASERFIX BIG SLG 200 type 020 - trash box element, two parts, made fibre reinforced concrete, loading capacity from A 15 - F 900 according to EN 1433 CE compliant, with ductile iron angle housing made of spheroidal ductile iron GJS 500-7, frame height 40 mm, eightfold locking, without transverse web in channel direction, with double-sided ductile iron protection with grained surface as non-slip surface made of spheroidal ductile iron GJS 500-7 5 mm material thicknes, with PVC-U socket DN/OD 200 and silt bucket made of galvanised steel, L/W/H 1000x488x1070 mm, Item no. 3957
Packaging unit
1
