Article No. 4957
Trash boxes
for NW 300, 2-parts, with PVC-U socket and galvanised mud bucket, 1,0 m
Delivery time on request
Questions?
Our experienced planning team will be happy to help you.
Get in touch

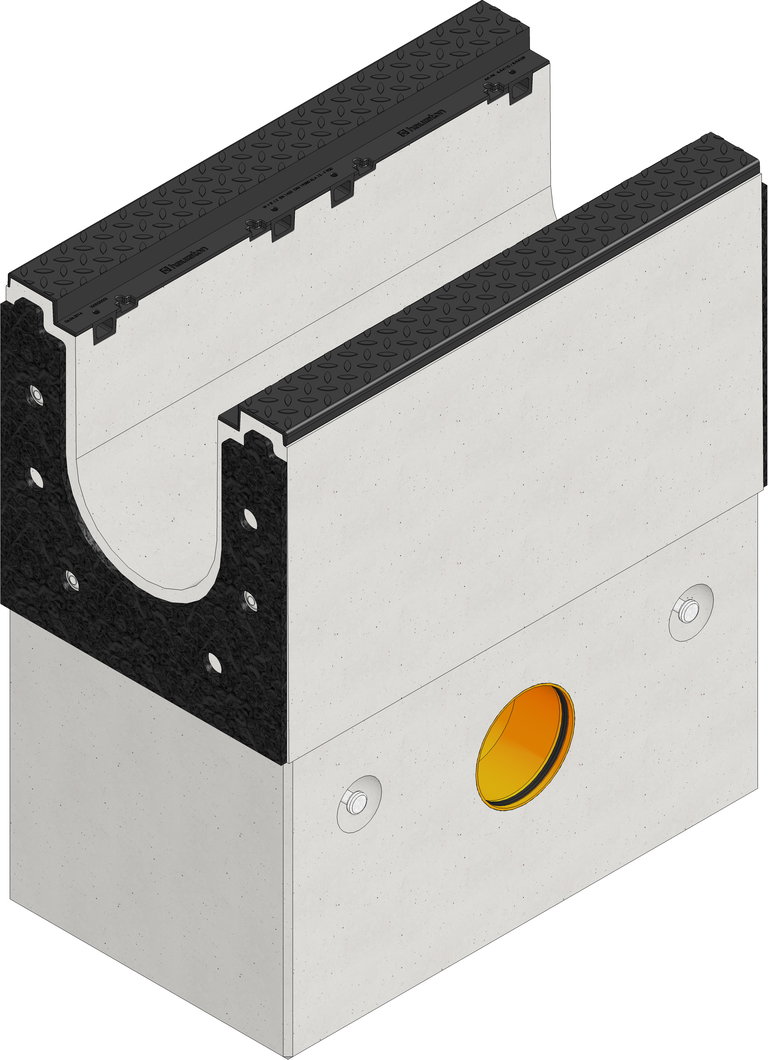

Product image
Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
4957
Length
1000 mm
Width
588 mm
Height
1150 mm
Weight
1275.00 kg
Material
Ductile iron GJS 500-7 with KTL-coating, fibre-reinforced concrete
Nominal size
300
Regulations
EN 1433, DIN 19580
Sales text
Trash box element with silt bucket made of galvanised steel, with PVC-U socket DN/OD 200, FASERFIX BIG SLG 300, 1 m
Product description
FASERFIX BIG SLG 300 type 010- Trash box element, two parts, made of fibre reinforced concrete, loading capacity from A 15 - F 900 according to EN 1433, CE compliant, with ductile iron angle housing consists of ductile graphite iron EN-GJS, height of angle housing 40 mm, eightfold locking, without traverse bar into the channel pipe, with safety joint, with 2 facing protection of the ductile iron channel benching with ribbed surface as an anti-slip surface consists of ductile graphite iron EN-GJS 5 mm material thickness with PVC-U socket DN/OD 200 and silt bucket made of galvanised steel, L/W/H 1000x588x1150 mm, item no. 4957
Packaging unit
1
